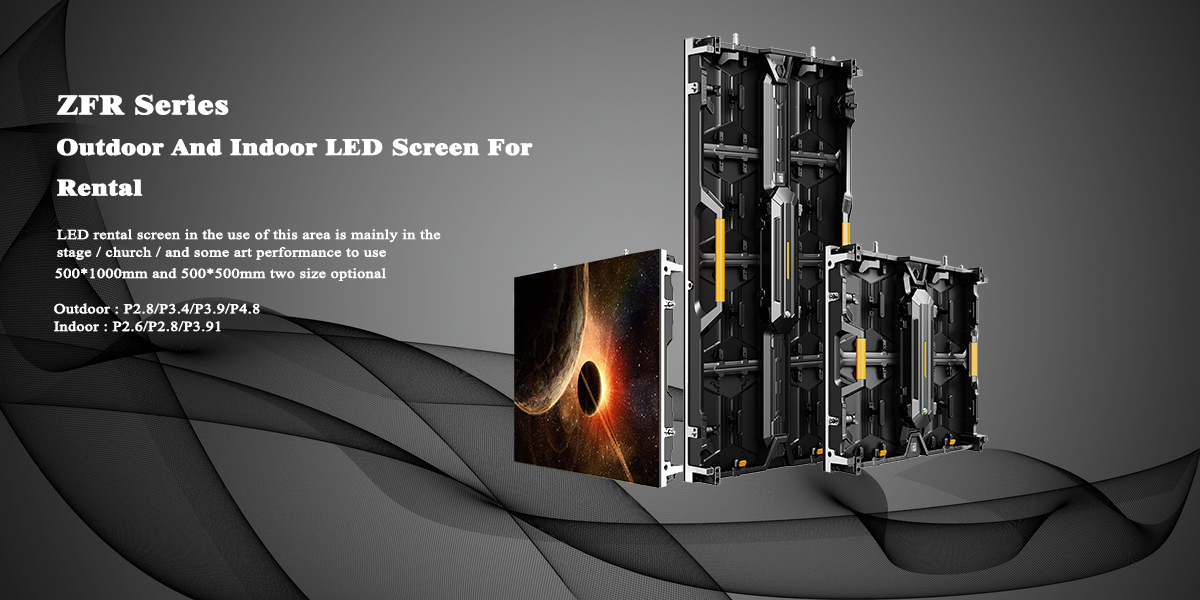

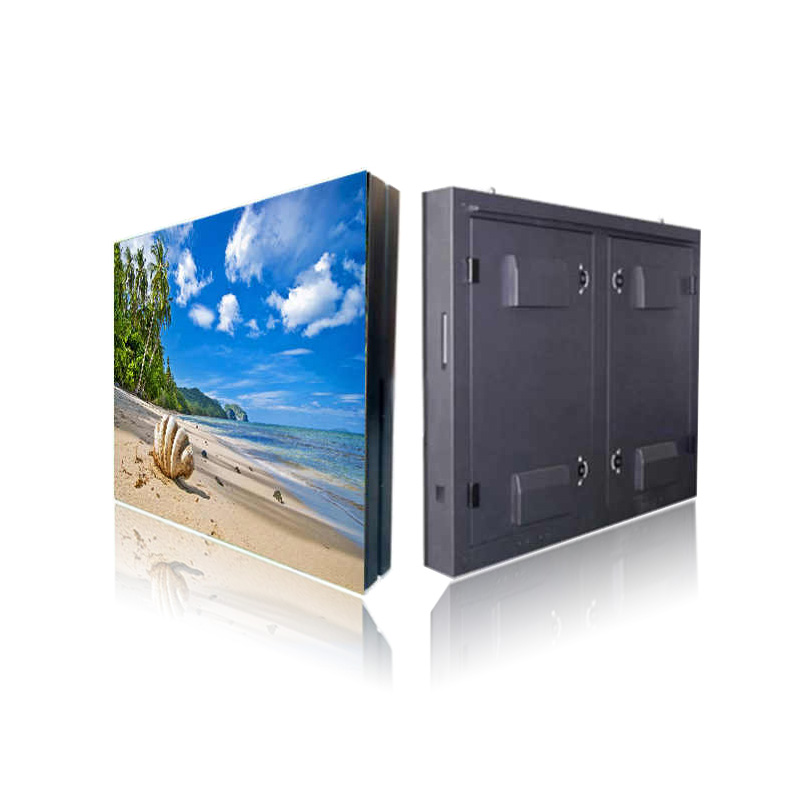

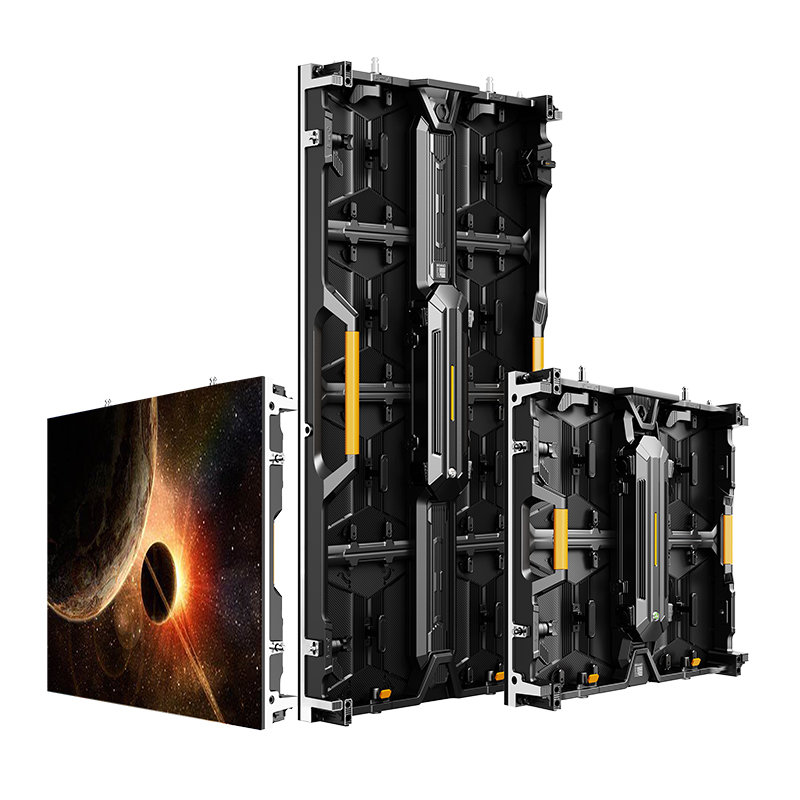

ZFR Series Outdoor And Indoor LED Screen For Rental
Main Features
√ LED rental screen in the use of this area is mainly in the stage / church / and some art performance to use
√ 500*1000mm and 500*500mm two size optional
√ Outdoor : P2.8/P3.4/P3.9/P4.8
√ Indoor : P2.6/P2.8/P3.91
PRODUCT DETAILS
Customized Die Casting Rental Series
Suitable for concerts, stages, command centers, security monitoring centers, video conference centers, studios, exhibitions and demonstrations.

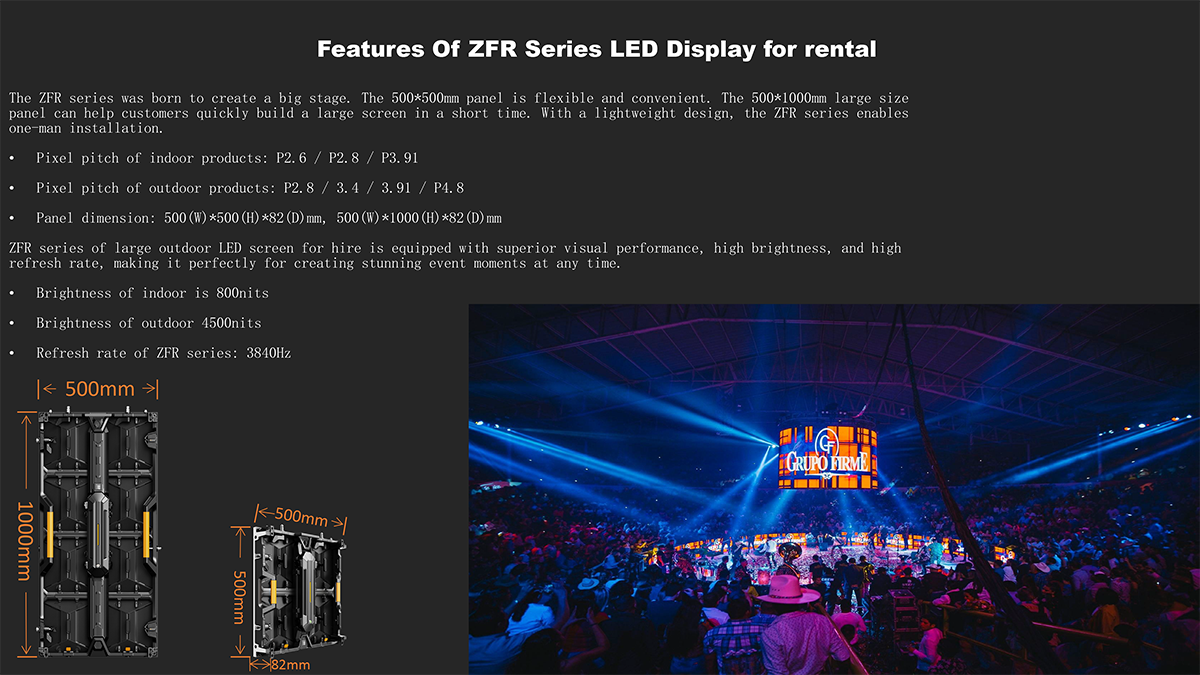

ZFR Series Outdoor And Indoor LED Screen For Rental
LED rental screen in the use of this area is mainly in the stage / church / and some art performance to use 500* 1000mm and 500*500mm two size optional:
Outdoor : P2.8/P3.4/P3.9/P4.8
Indoor: P2.6/P2.8/P3.91

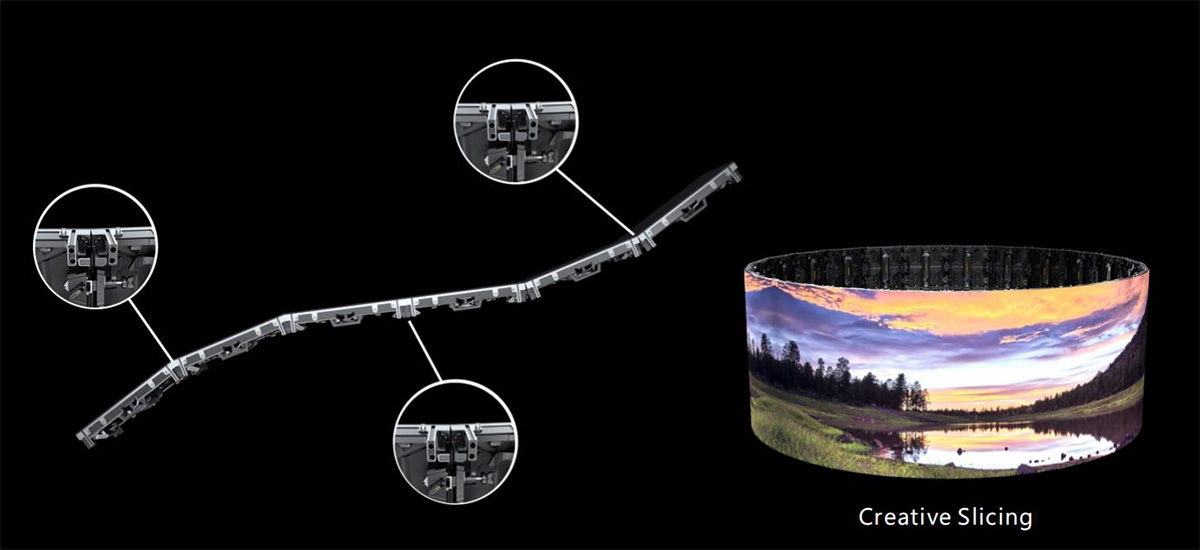

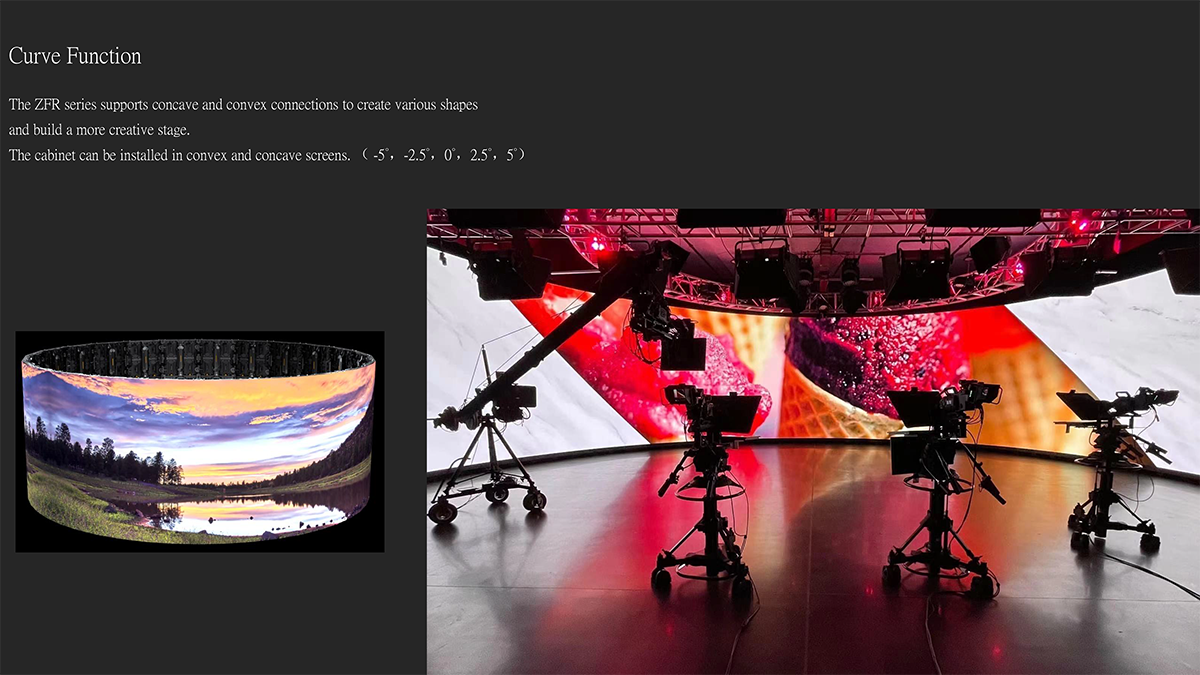

Creative Slicing
-5,°-2.5,°+2.5,°+5°corners splicing available, easily reach curved splicing.

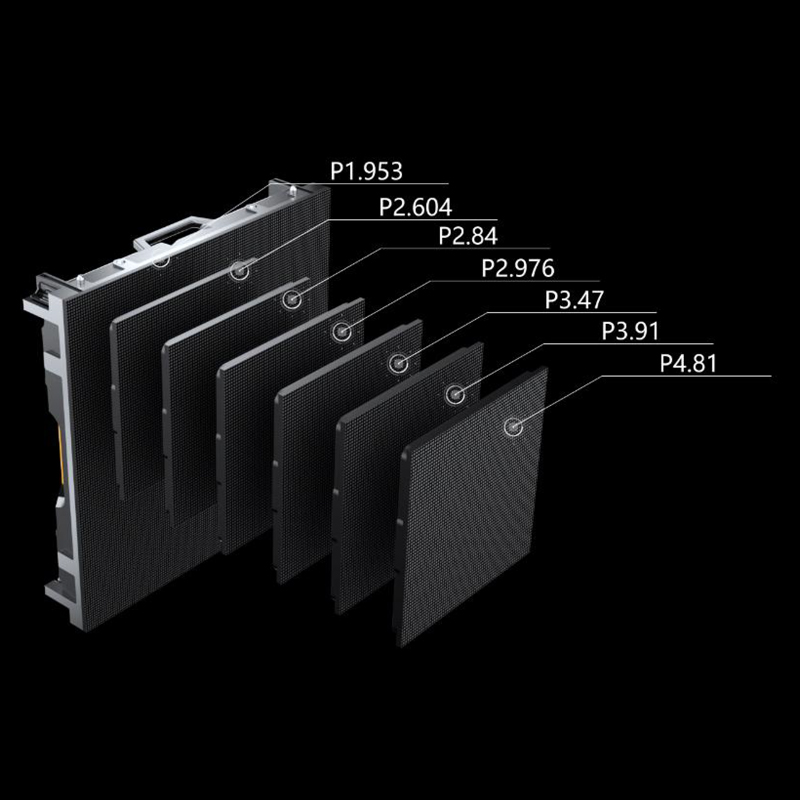

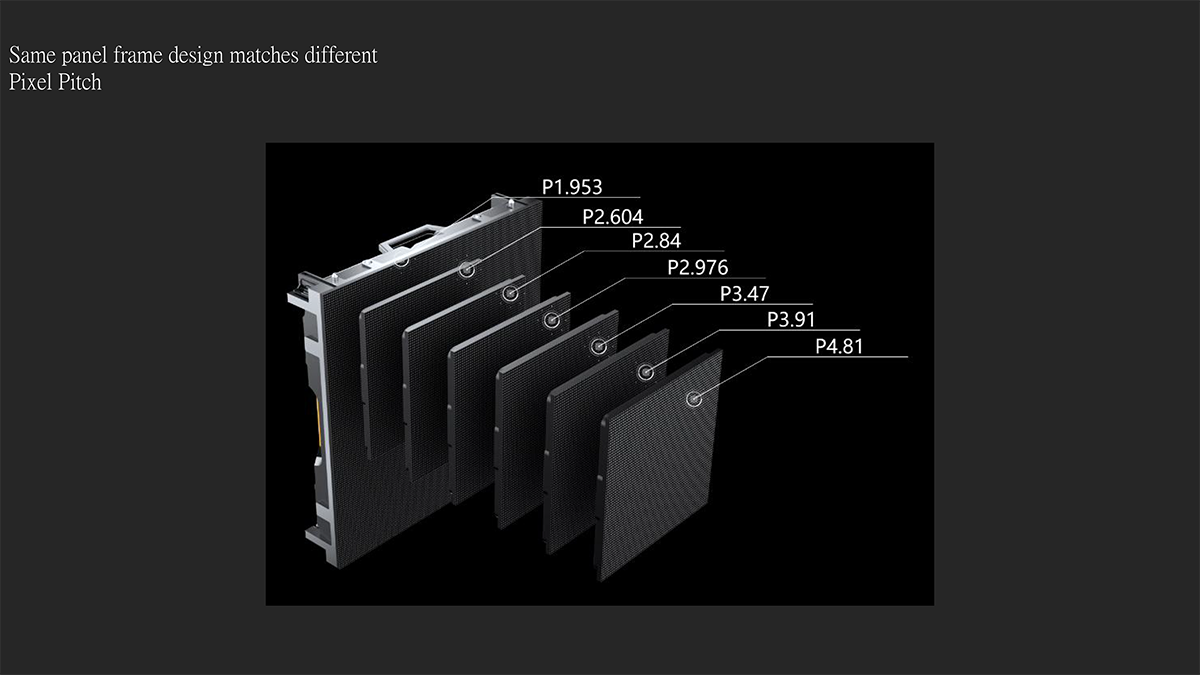

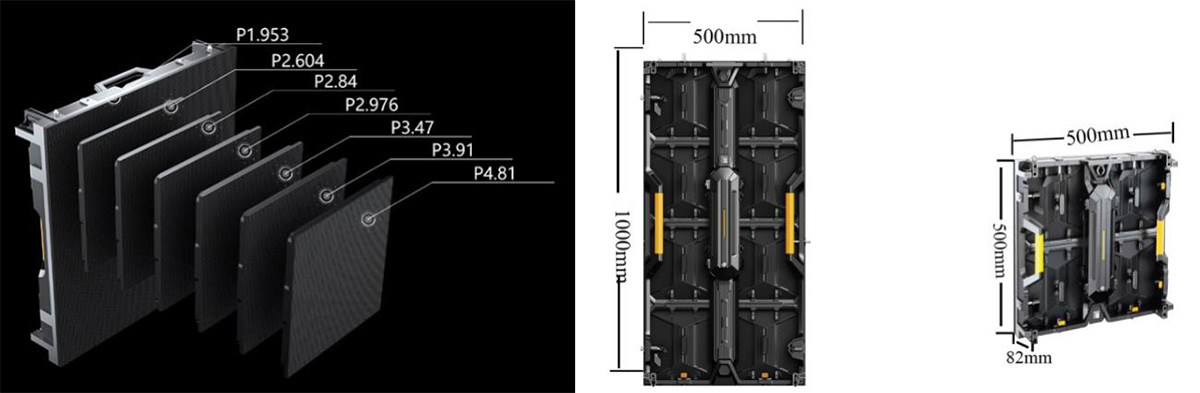

Technical Parameters of Pixel Pitch
As professional rental services solution for stage design, this LED display has two panel sizes for option,
with pixel picthes from 1.9mm to 4.8mm, which can meet any demands with various stage display.

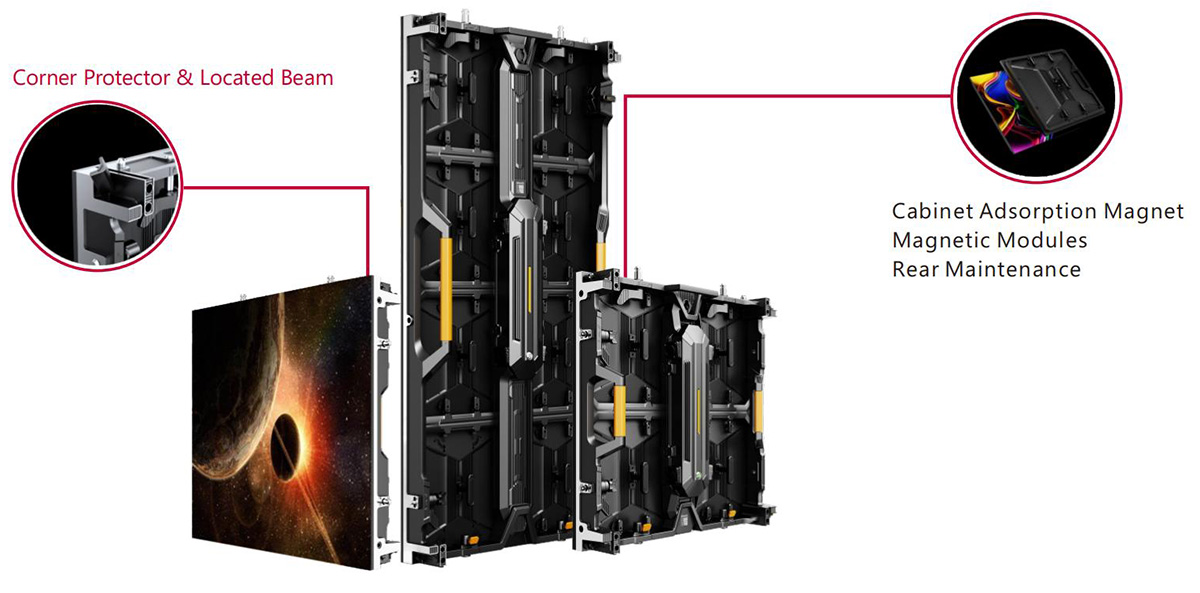

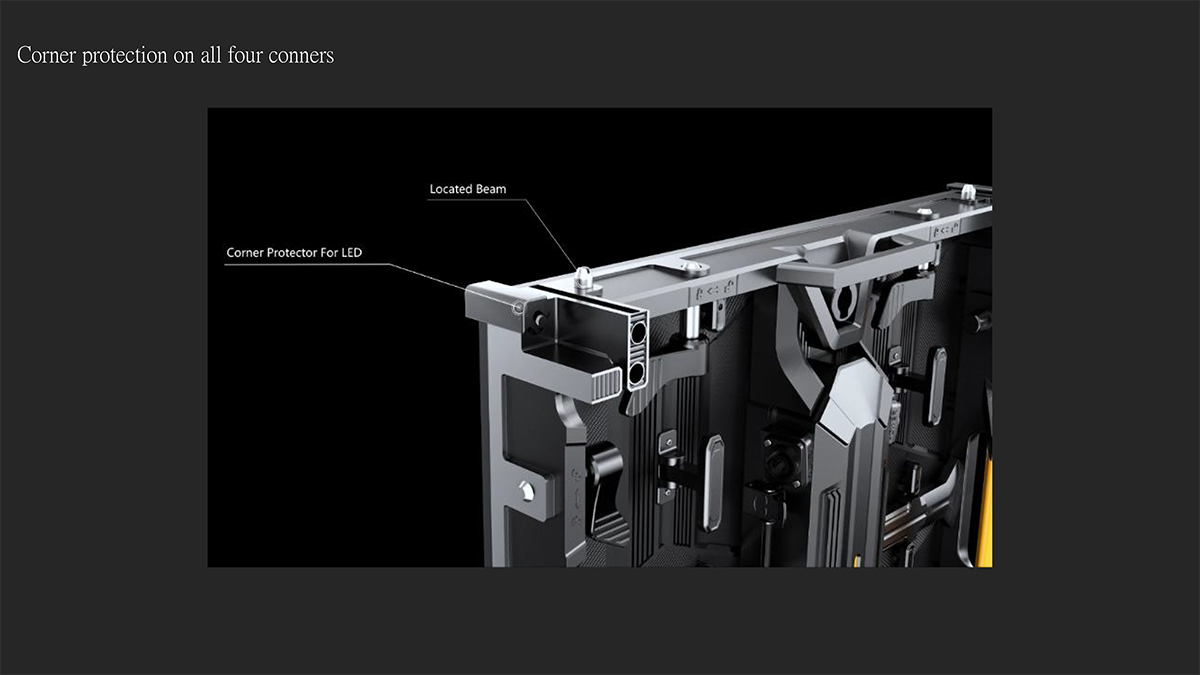

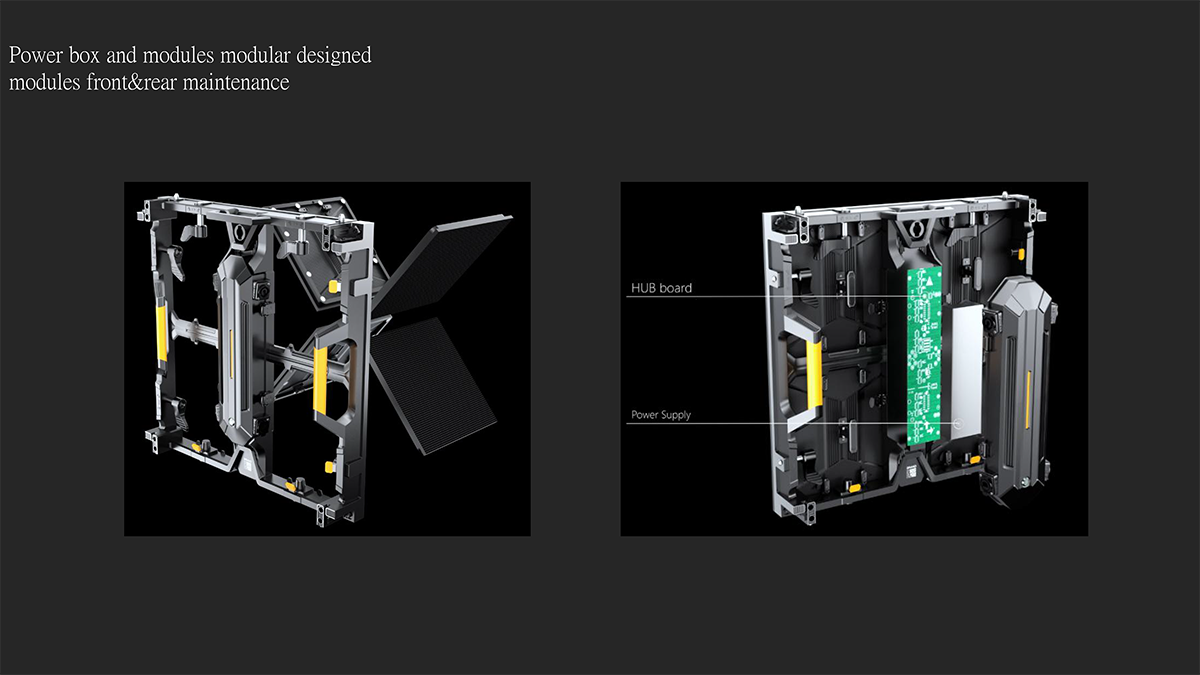

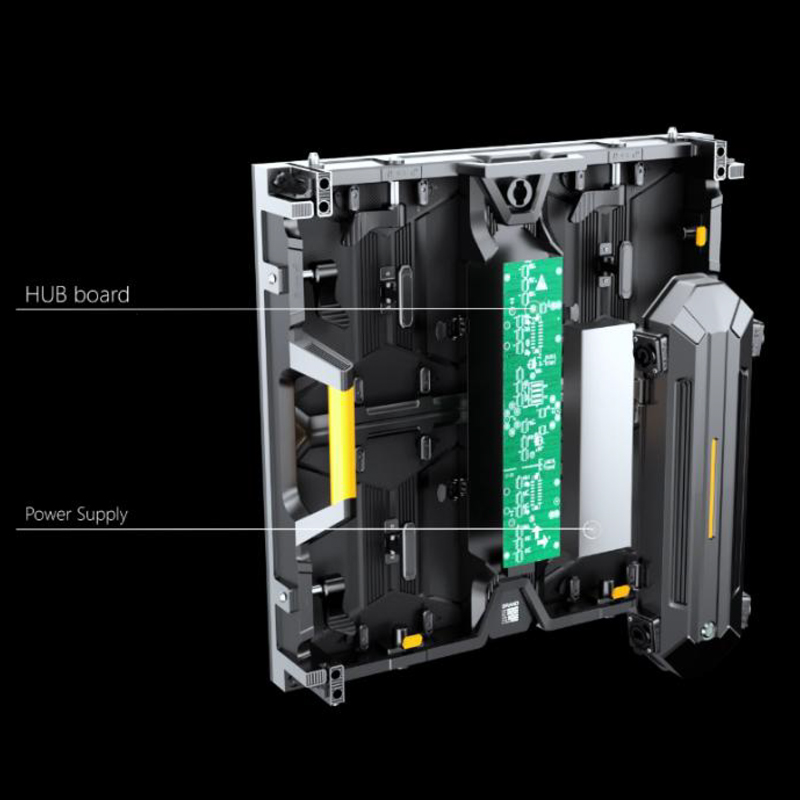

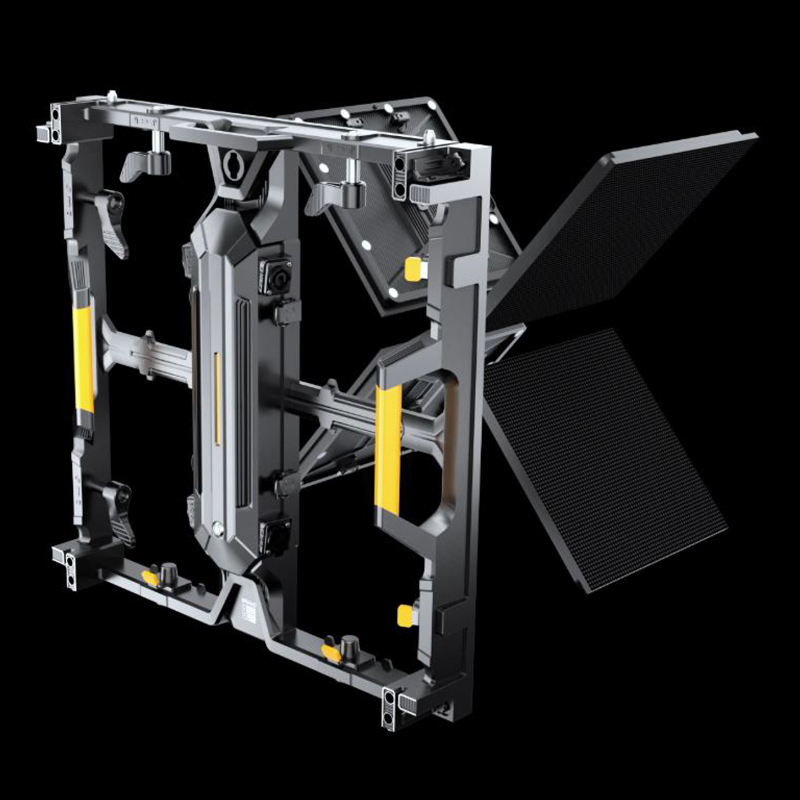

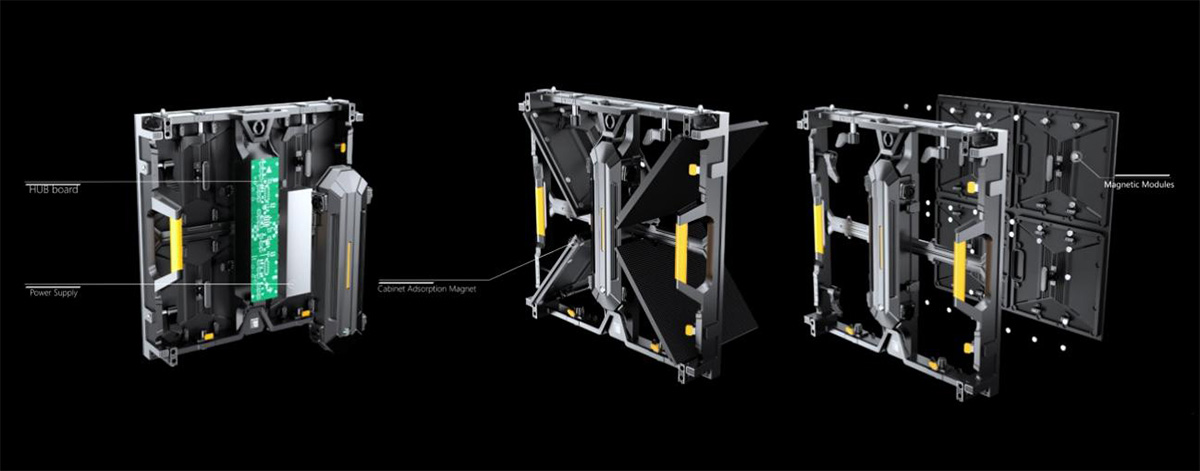

Front and Rear Maintenance
Modular design effectively improves the maintenancee efficiency, saves teh maintenance time and cost.

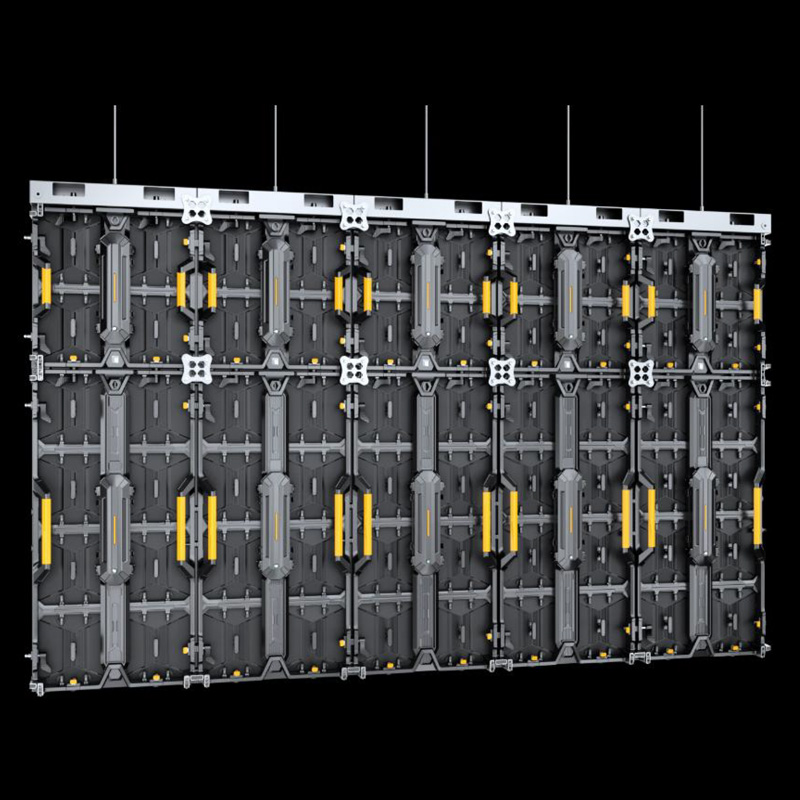

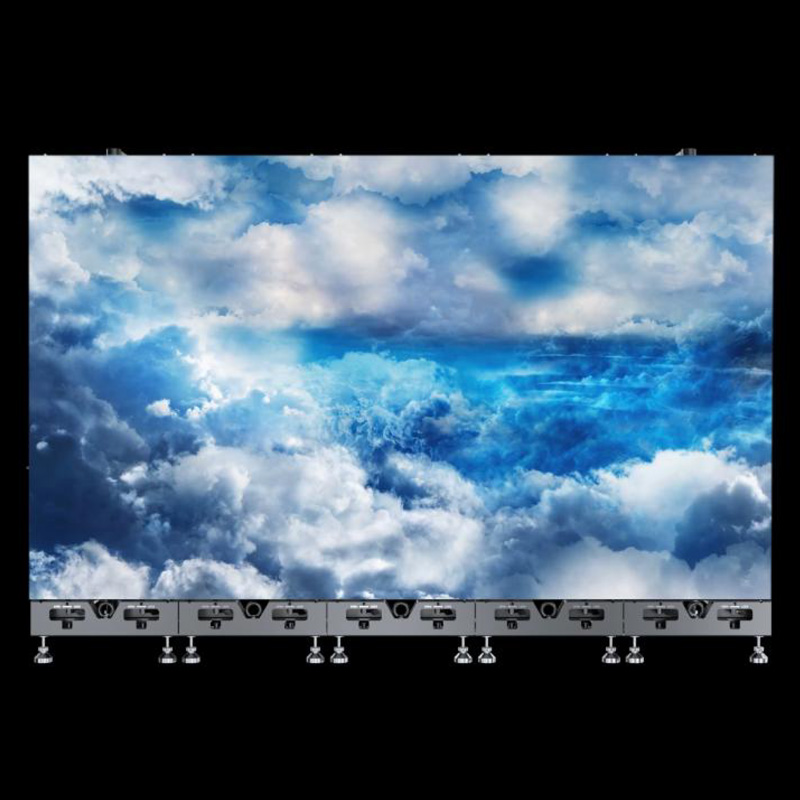

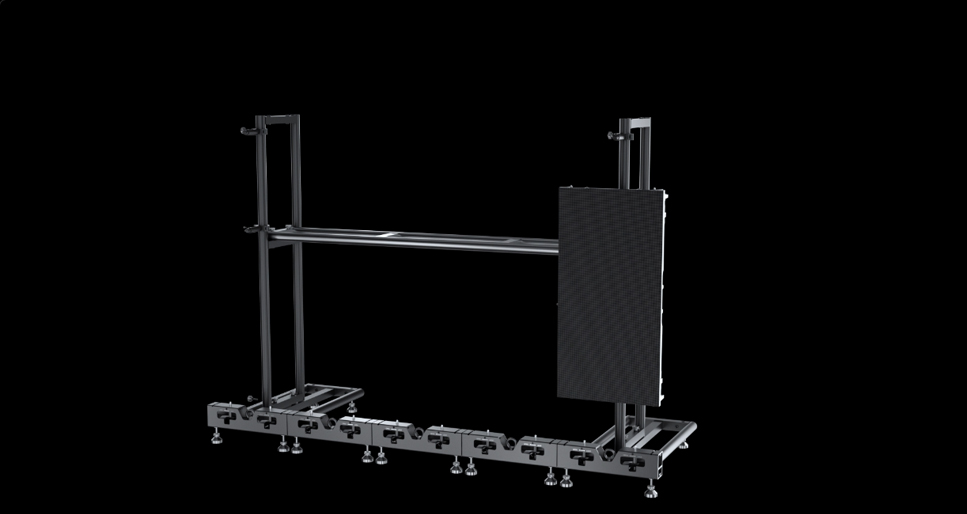

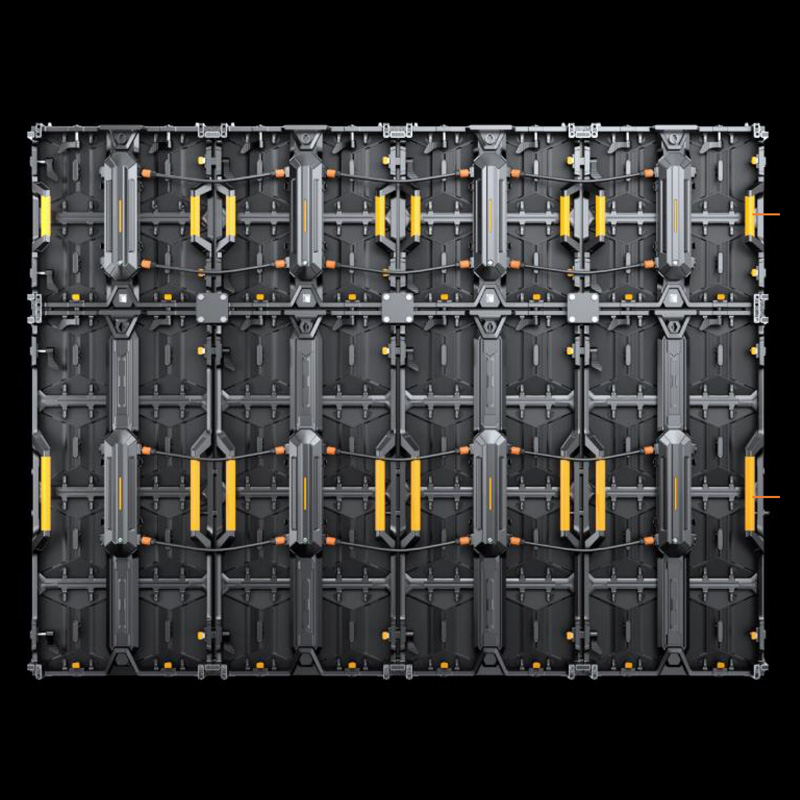

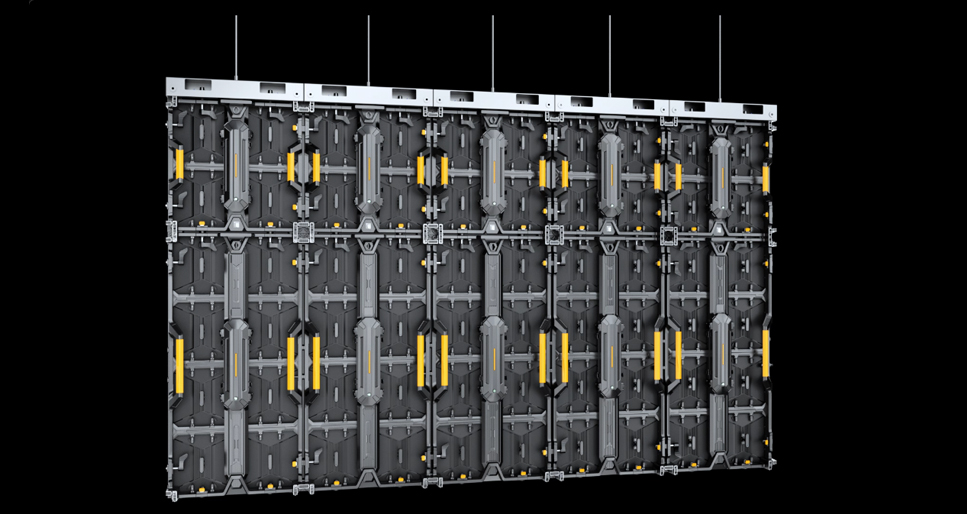

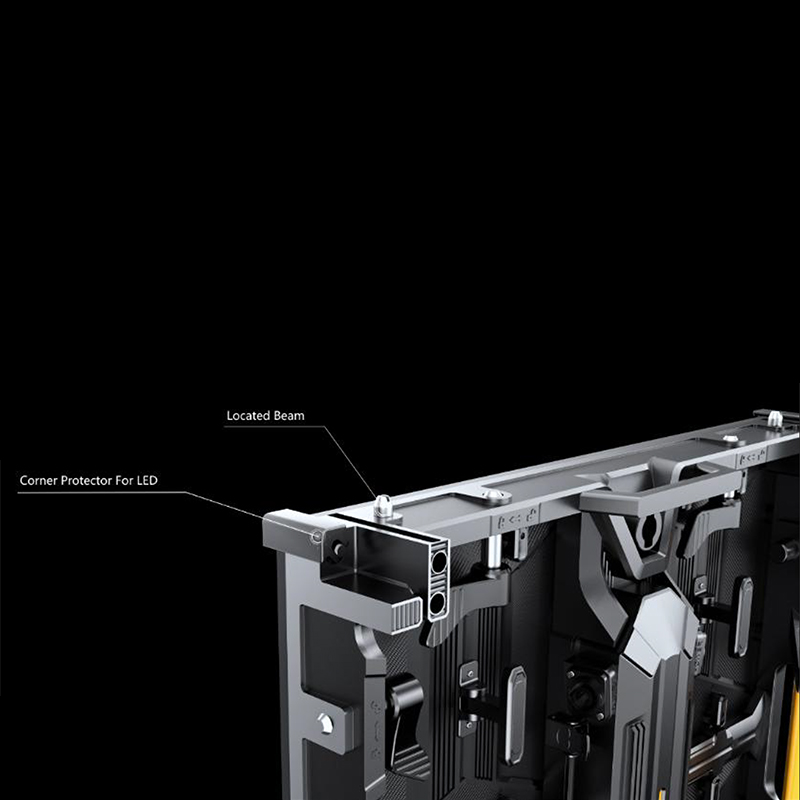

Installation Method
Fast locks design, reach fast assembly and disassembly.
|
Installation Method |
Installation Method |
 |
 |
Power Models

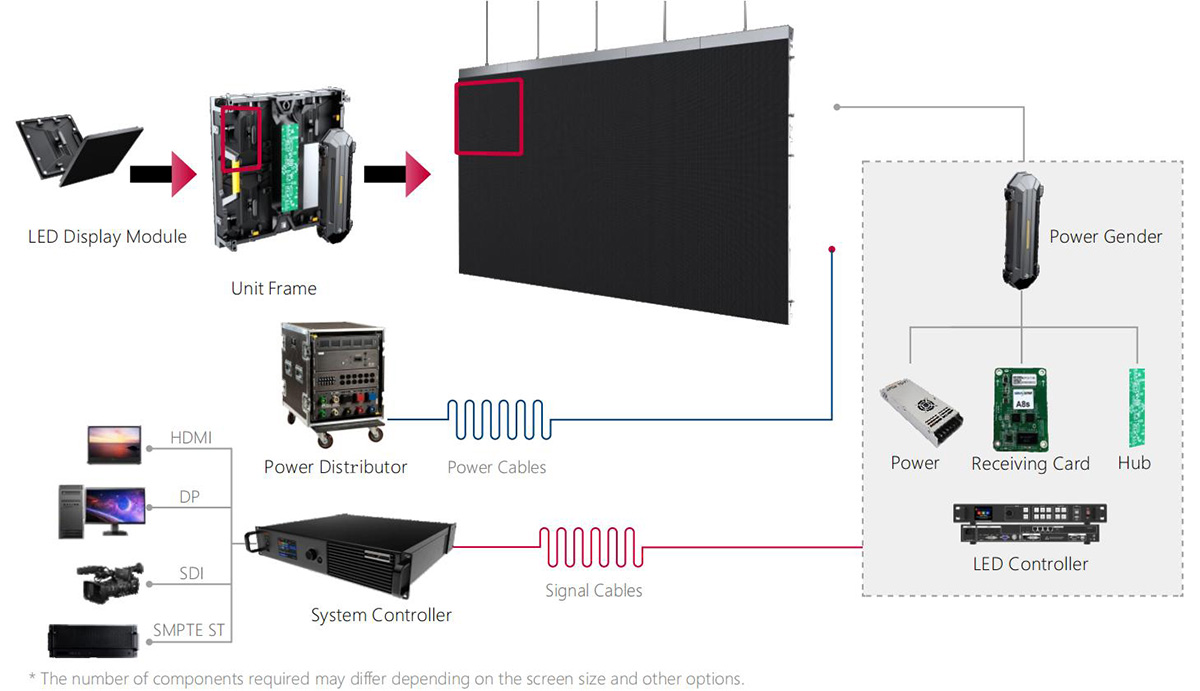

System Diagram
SPECIFICATIONS
Parameter
Value
Model
ZFR2.6
ZFR2.8
ZFR3.9
ZFR2.8
ZFR3.4
ZFR3.9
ZFR4.8
Pixel Pitch
2.6mm
2.8mm
3.9mm
2.8mm
3.4mm
3.9mm
4.8mm
Enviroment
Indoor
Indoor
Indoor
Outdoor
Outdoor
Outdoor
Outdoor
LED Type
3-in-l SMD
Briglitness
700cd/㎡
700cd/㎡
700cd/㎡
4500cd/㎡
4500cd/㎡
4500cd/㎡
4500cd/㎡
Pixel Density
147456pixel/㎡
123904pixel/㎡
65536pixel/㎡
123904pixel/㎡
82944pixel/㎡
65536pixel/㎡
43264pixel/㎡
Module Size(WxH)
250mm x 250mm
Panel Size
500mm x 500mm x 84mm
500mm x 1000mm x 84mm
Panel Resolution
192 x 192 dots
176 x 176 dots
128 x 128 dots
176 x 176 dots
144 x 144 dots
128 x 128 dots
104 x 104 dots
192 x 384 dots
176 x 352 dots
128 x 256 dots
176 x 352 dots
144 x 288 dots
128 x 256 dots
104 x 208 dots
Panel Weight
7.2kg
7.2kg
7.2kg
7.5kg
7.5kg
7.5kg
7.5kg
13.2kg
13.2kg
13.2kg
13.5kg
13.5kg
13.5kg
13.5kg
Material
Die-cast Aluminum
Ingress Protection
IP43
IP65
Opeiating Tenipeiature / Humility
-10℃ to 45℃ ∕ 10%-80%
-20℃ to 50℃ ∕ 10%-90%
Mauiteiiance
Front Maintenance
Cuive(Convex-Concave)
-5o, -2.5o, 0o, +2.5o, +5o
Viewing Angle(H∕V)
140o∕120o
Contrast Rate
5000 : 1
3000 : 1
Input Power ∕Panel(Max.)
480w/㎡
560w/㎡
Input Power ∕Panel(Ave.)
280w/㎡
320w/㎡
Refiesh Rate
3840 Hz
Input Voltage
100-240 VAC
Input Power Frequency
50 -60 Hz

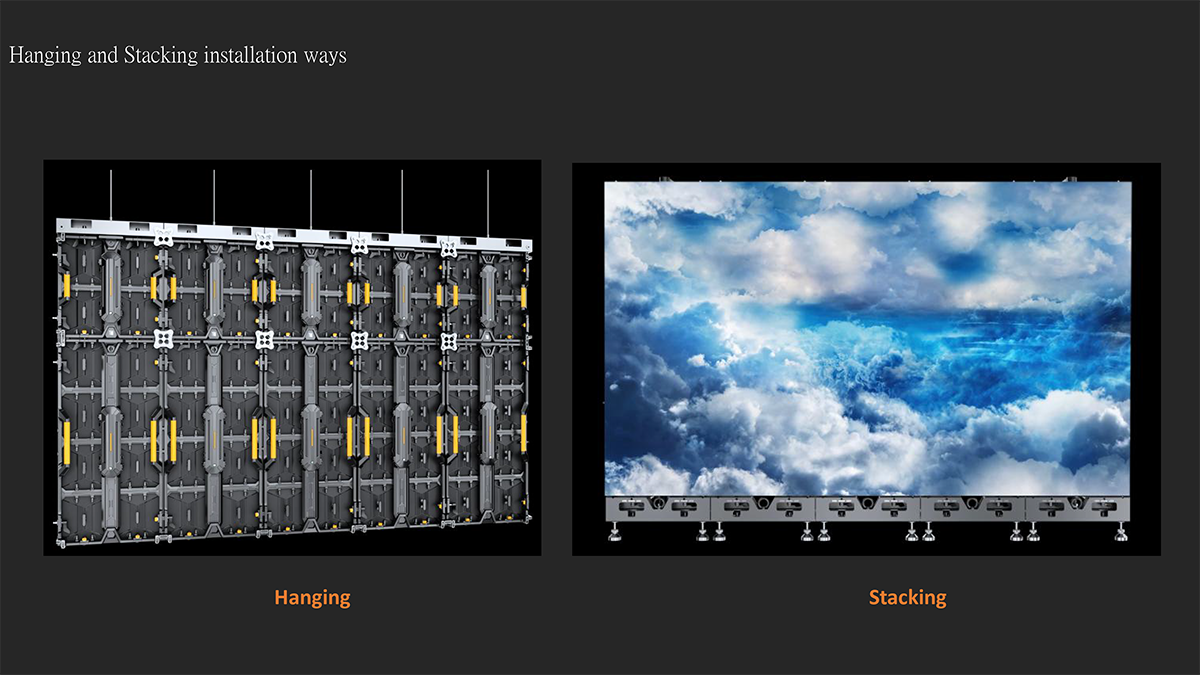

Standard Mounting Configuration
Hanging ∕ Stacking
Certification
CE/UL/RoHS/FCC

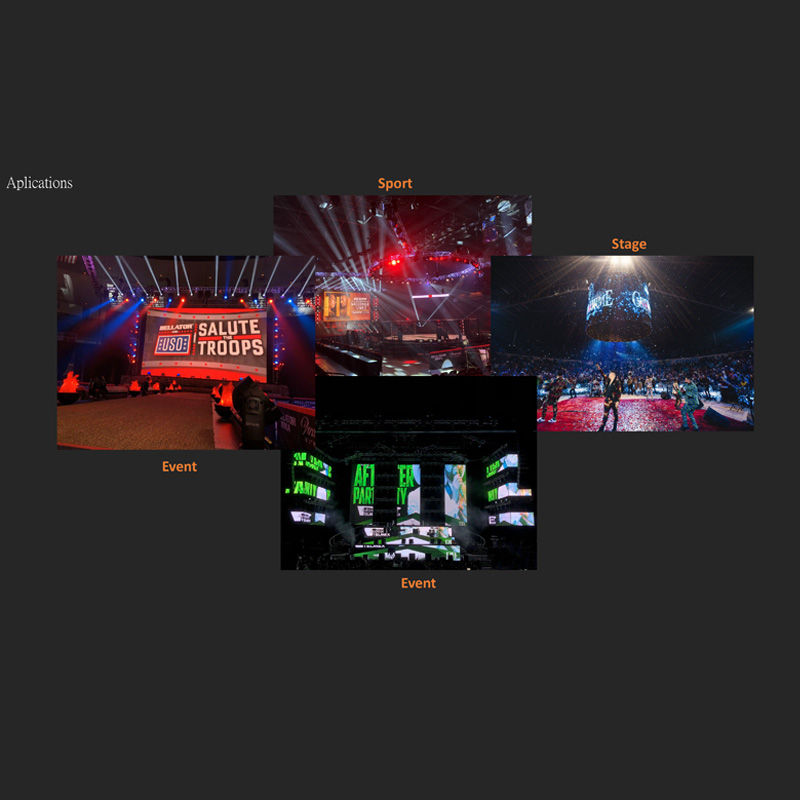

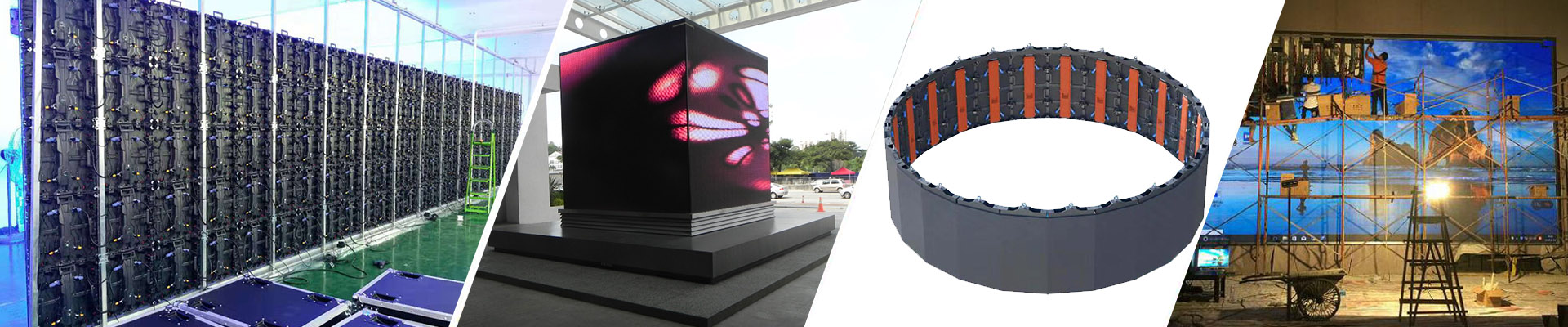

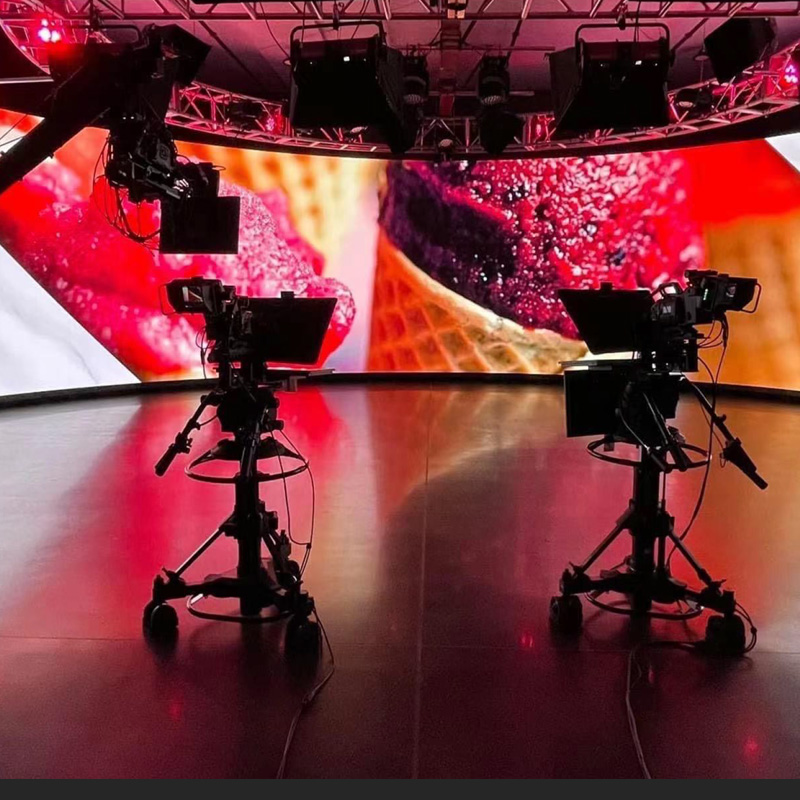

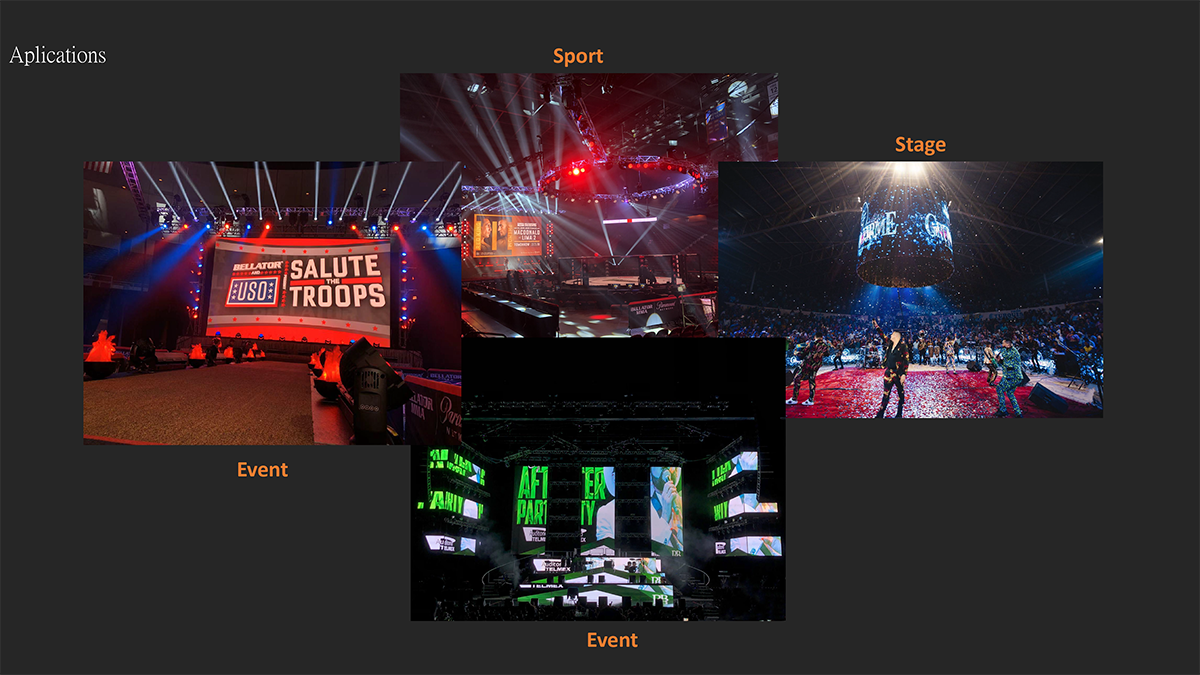

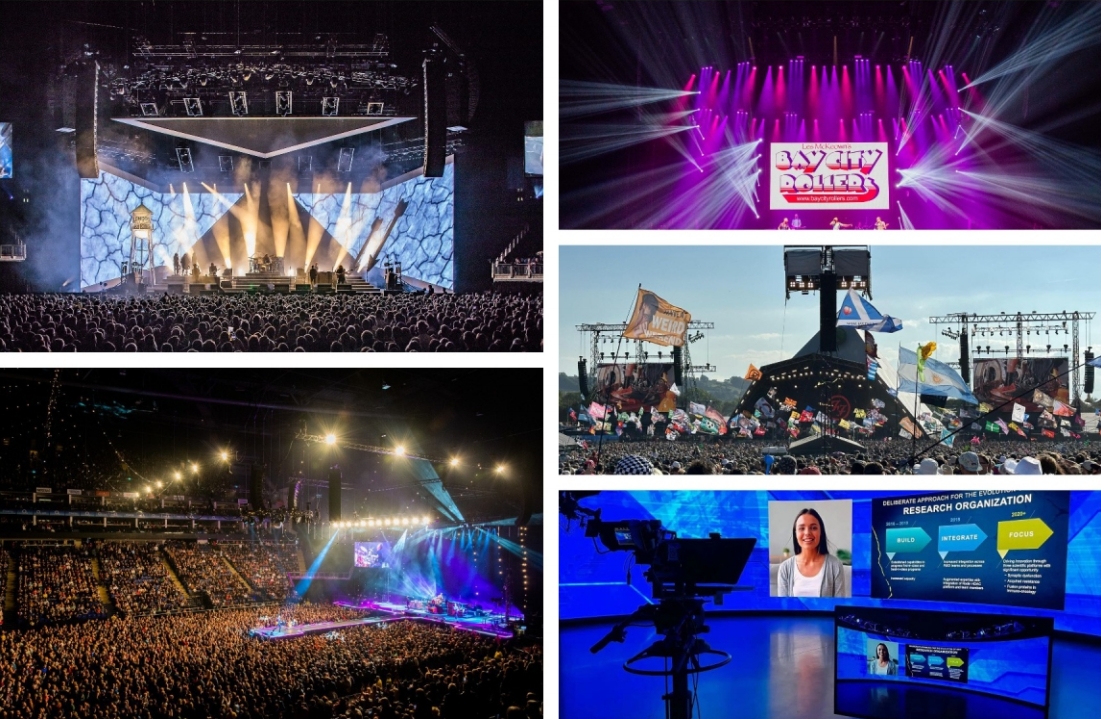

Applications
