ZSO Series LED Display for Rental
Main Features
√ Pixel pitch of outdoor products: P2.8 / P3 / P3.125 / P3.33 / P3.5 / P3.8 / P4
√ Cabinet dimension: According to the module’s size to be customized
√ Brightness of outdoor 5500-6500nits
√ Refresh rate of ZSO series: 3840Hz
PRODUCT DETAILS
Outdoor Waterproof Fixed LED Display

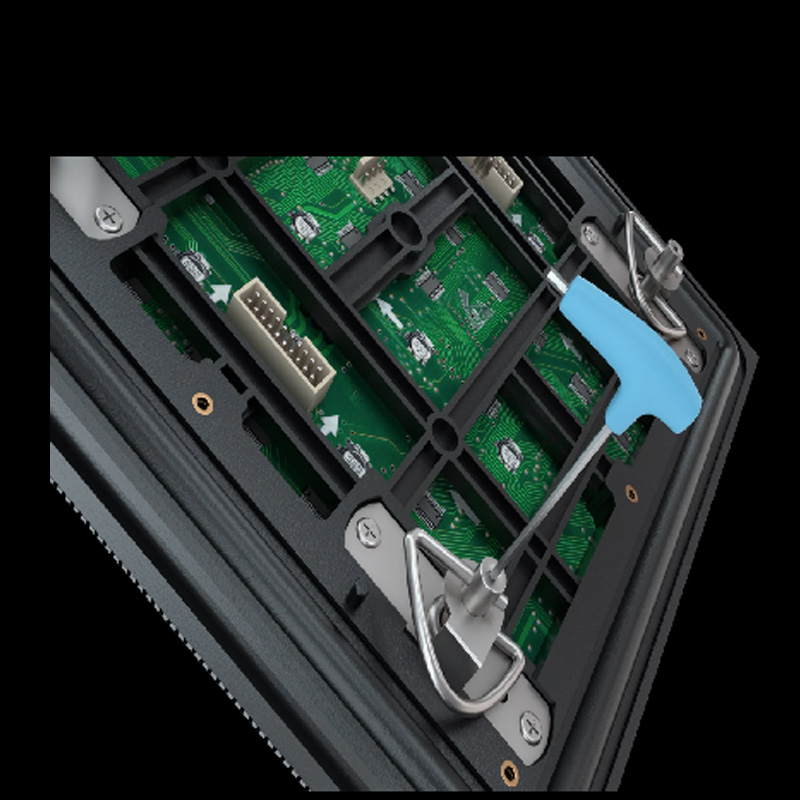

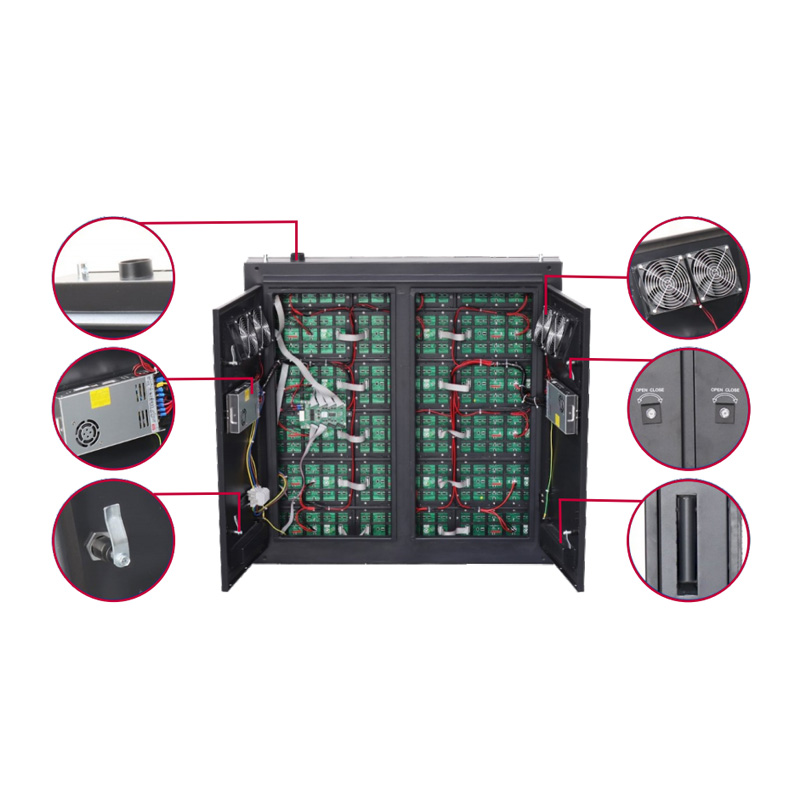

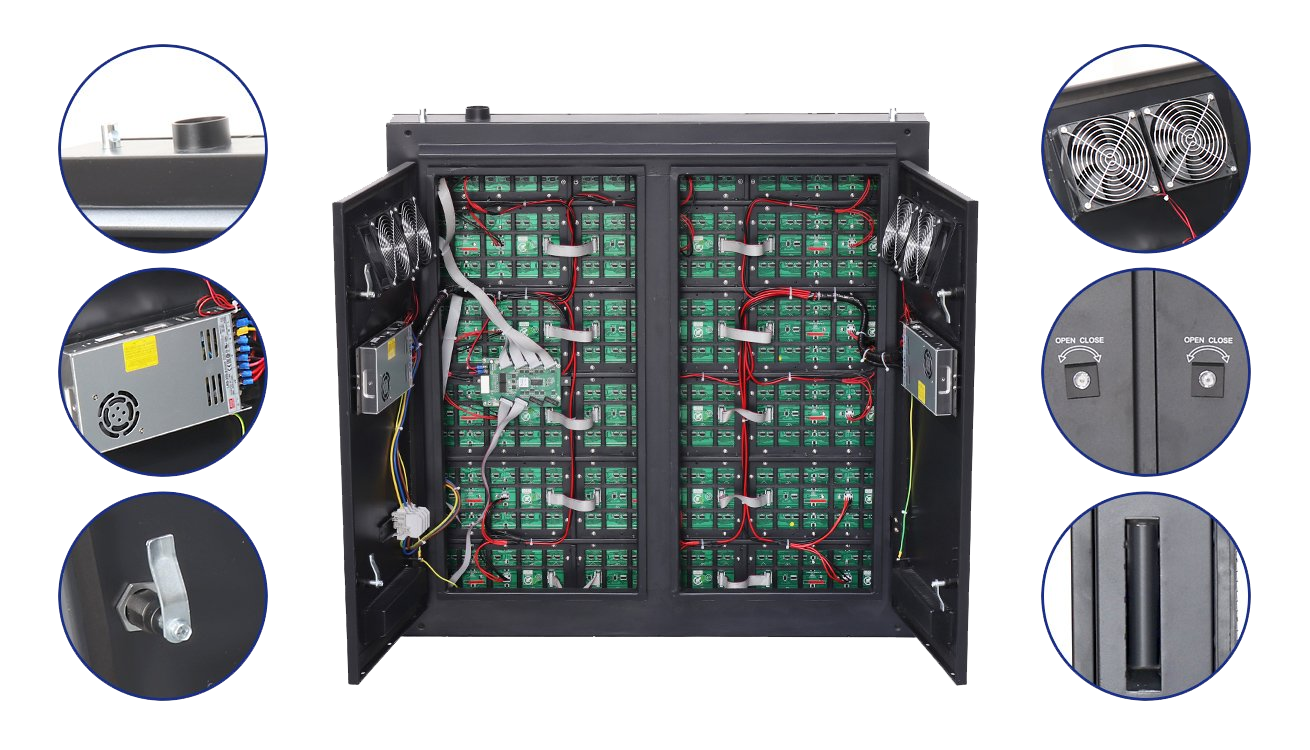

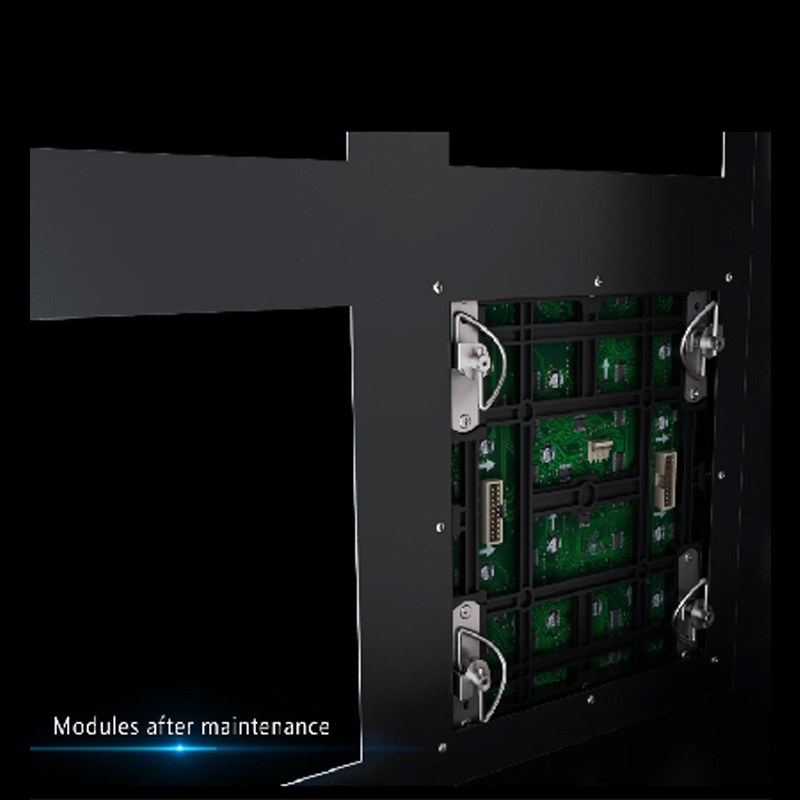

Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving maintenance cost.

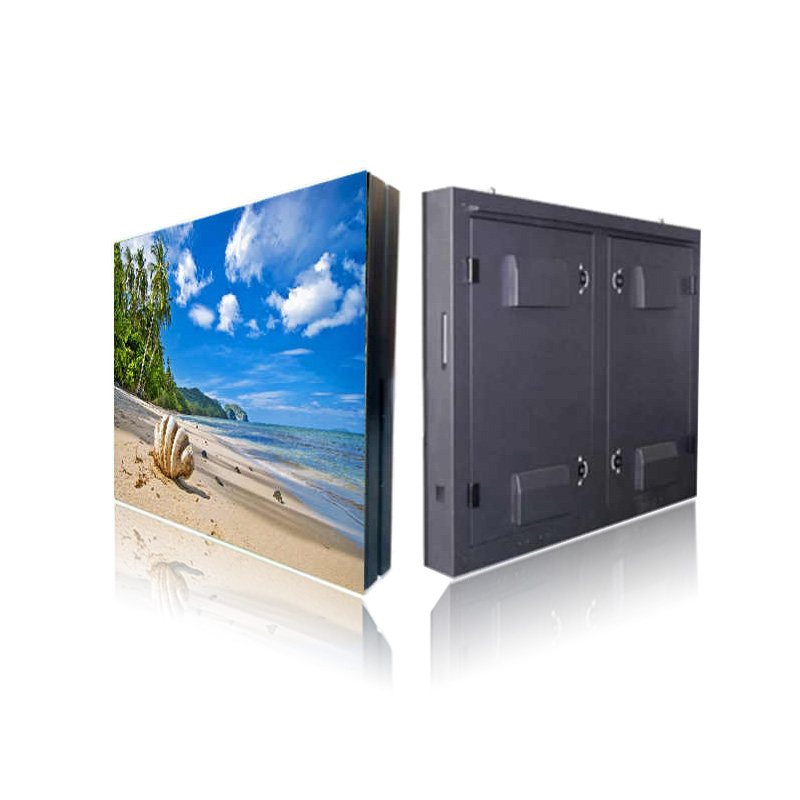

ZSO Series Outdoor Waterproof Fixed LED Display
● SMD LED with Best Color Uniformity and High Brightness.
● Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%.
● PWM driver IC, 4K refresh rate, no waterless ripple.
● The kit is made of high-grade raw materials, with good toughness and not easy to be deformed.
● LED lamp is well split and have good brightness uniformity, mechanical engineering design of reinforcing ribs to ensure product flatness.

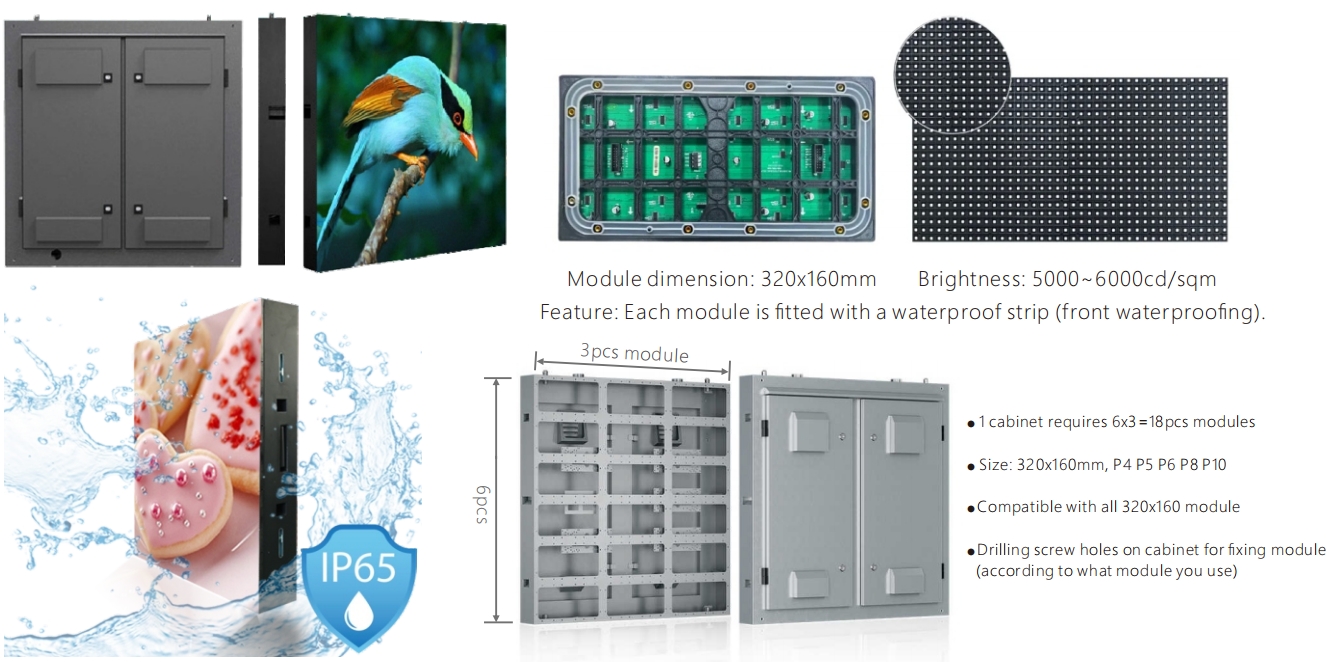

Customization

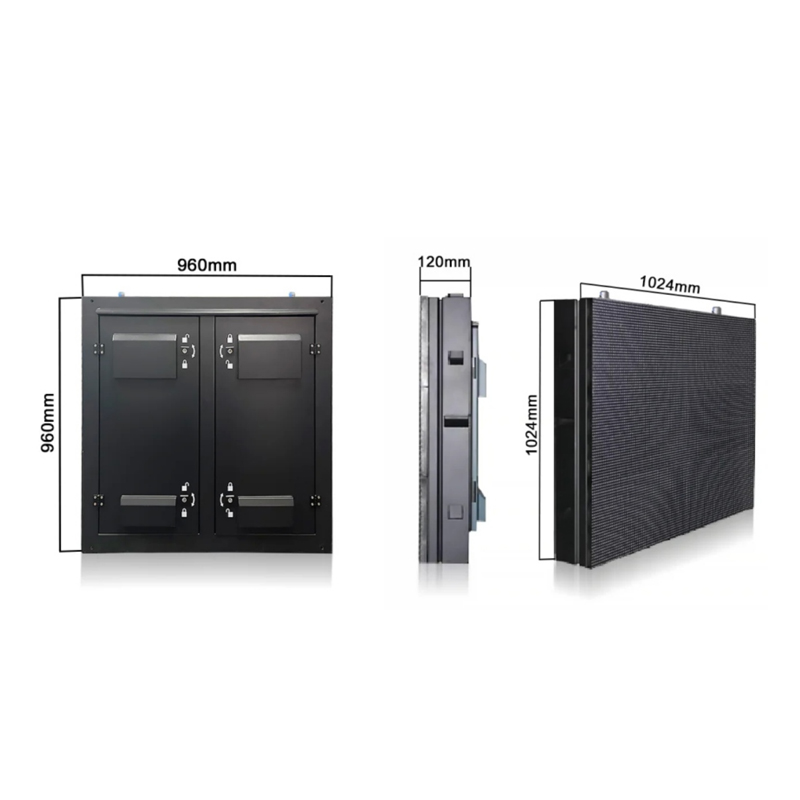

Cabinet size:960x960mm, support customization; IP65 high waterproof protection from the front and back; lightweight only 45KG/m2
Technical Parameters
* LED Display Screen Panel Materials: Waterproof Aluminum/Iron IP65.
* Panel Size: 960*960mm or Customized.
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.
 |
 |
 |
|

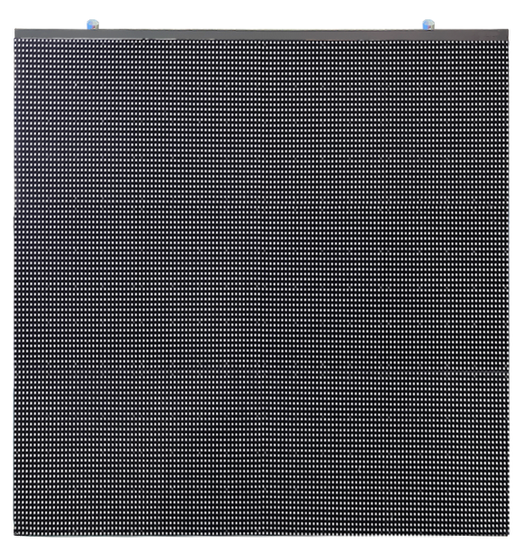

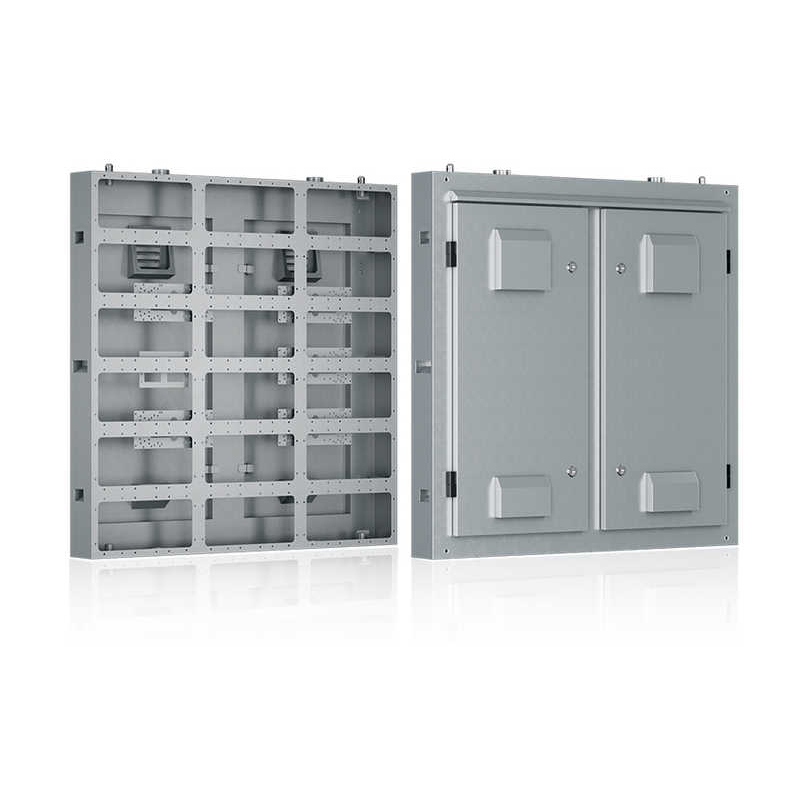

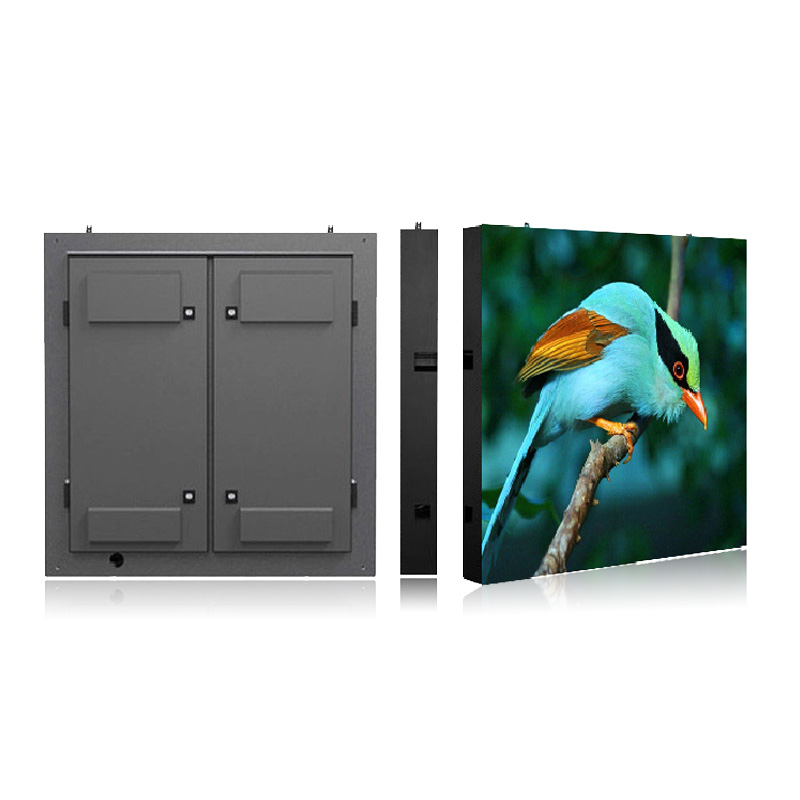

Front of panel
|

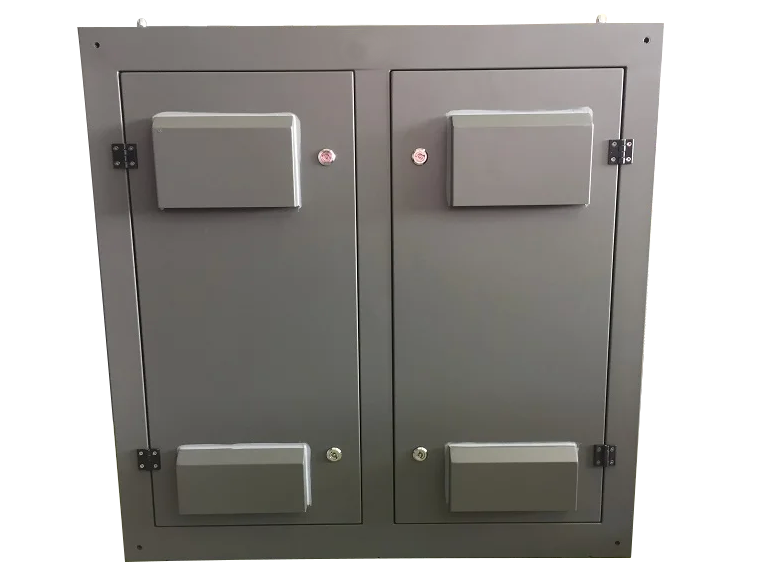

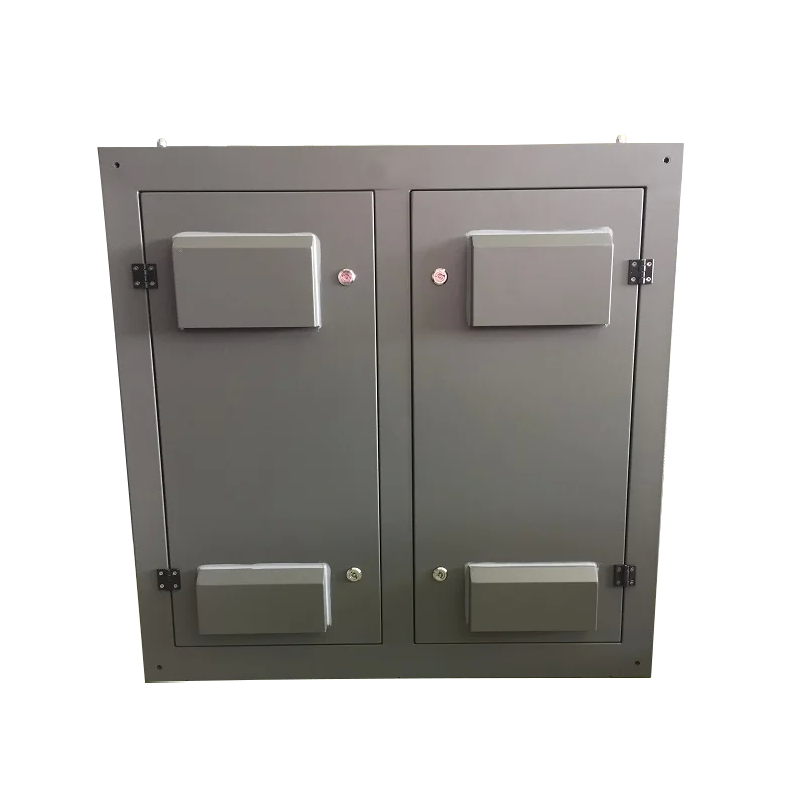

Back of panel
|

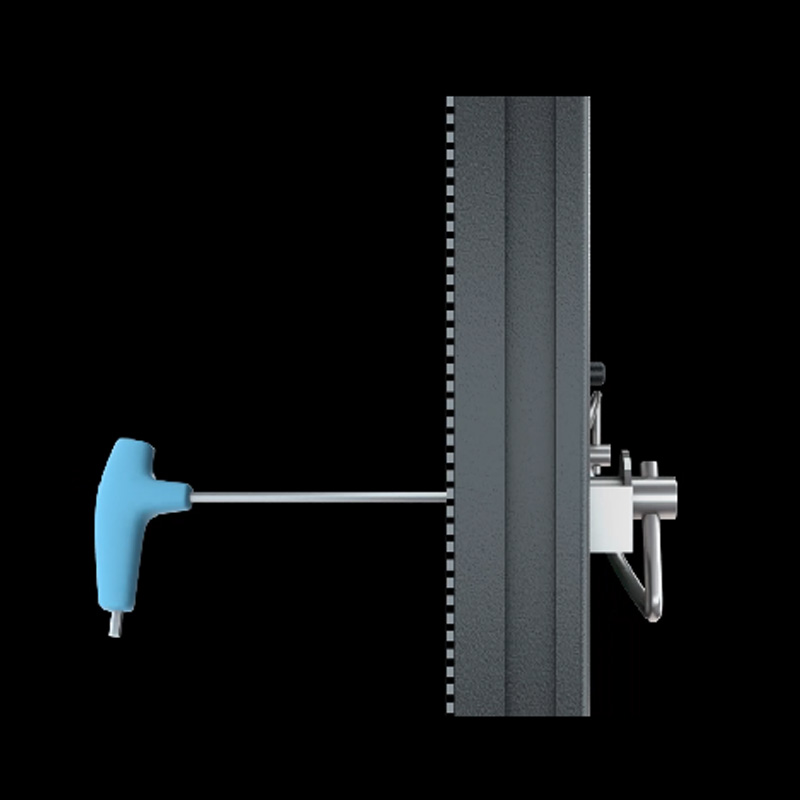

Side of panel
|

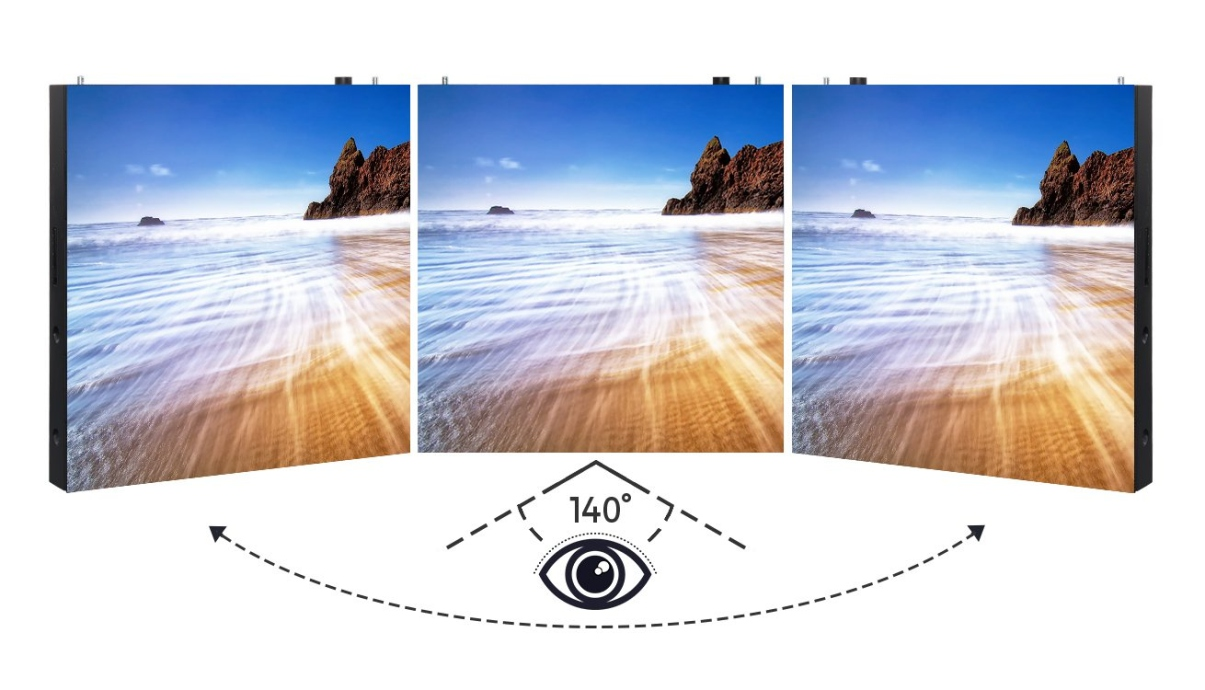

Wide Viewing Angle
Ultra Wide View Angle
View angle is 140,° viewing position as you like.

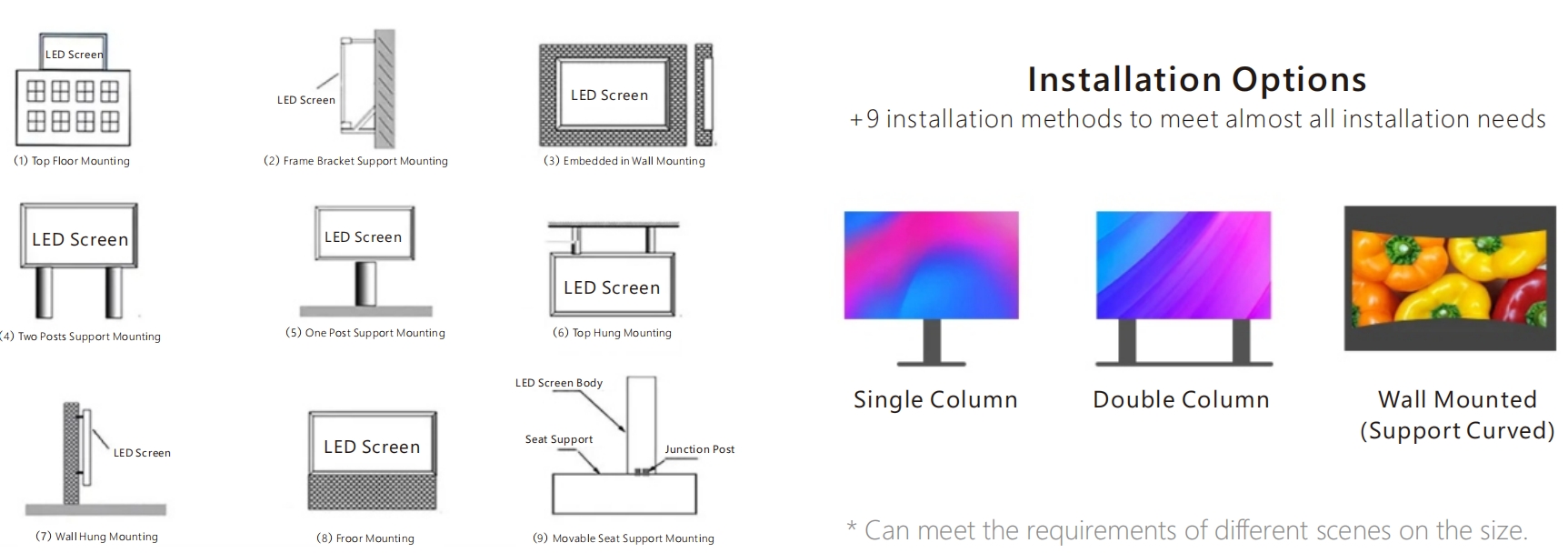

Installation Method
Fast locks design, reach fast assembly and disassembly, +9 installation methods to meet almost all installation needs.
Specification
|
Technical Parameters |
||||
|
Part Number |
P4 |
P5 | P6 | P8 |
|
Pixel Pitch |
4mm |
5mm |
6mm |
8mm |
|
Pixel Coniguration |
SMD2525 |
SMD2525 |
SMD3535 |
SMD3535 |
|
Scan Mode |
1/8 |
1/8 |
1/8 |
1/8 |
|
Module size |
480*320mm |
480*320mm |
480*320mm |
480*320mm |
|
Module resolution (dots) |
64*64 |
64*32 |
32*32 |
40*20 |
|
Cabinet size (mm) |
960*960mm |
960*960mm |
960*960mm |
960*960mm |
|
Cabinet resolution (dots) |
256*256 |
192*192 |
160*160 |
120*120 |
|
Cabinet Pixels |
57600 dots |
35864 dots |
25600 dots |
14400 dots |
|
IP Rating (front/back) |
Ip65 |
Ip65 |
Ip65 |
Ip65 |
|
Brightness Intensity |
5000CD∕m2 |
5000CD∕m2 |
5000CD∕m2 |
5000CD∕m2 |
|
Viewing Angle |
140o |
140o |
140o |
140o |
|
View Distance |
4-60m |
5-80m |
6-80m |
8-100m |
|
Grey level |
16bit |
16bit |
16bit |
16bit |
|
Average Power Consumption |
280w∕sqm |
300w∕sqm |
300w∕sqm |
310w∕sqm |
|
Max.Power Consumption |
780w∕sqm |
800w∕sqm |
800w∕sqm |
800w∕sqm |
|
Refresh Frequency |
1920HZ |
1920HZ |
1920HZ |
1920HZ |
|
Interface definition |
Hard Connection |
Hard Connection |
Hard Connection |
Hard Connection |
|
Environmental |
OUTDOOR |
OUTDOOR |
OUTDOOR |
OUTDOOR |
|
Service access |
Front / Rear |
|||
|
Control Mode |
Synchronous display with control PC by DVI |
|||
|
Support Input |
Composite,S-Vido,Component, VGA, DVI, HDMI, HD_SDI |
|||
|
Operation Power |
AC100~240 50∕60HZ |
|||
|
Operating Temperature |
- 20oC~ + 50oC |
|||
|
Operating Humidity |
10~95%RH |
|||
| Operating Life |
50,000hours |
|||

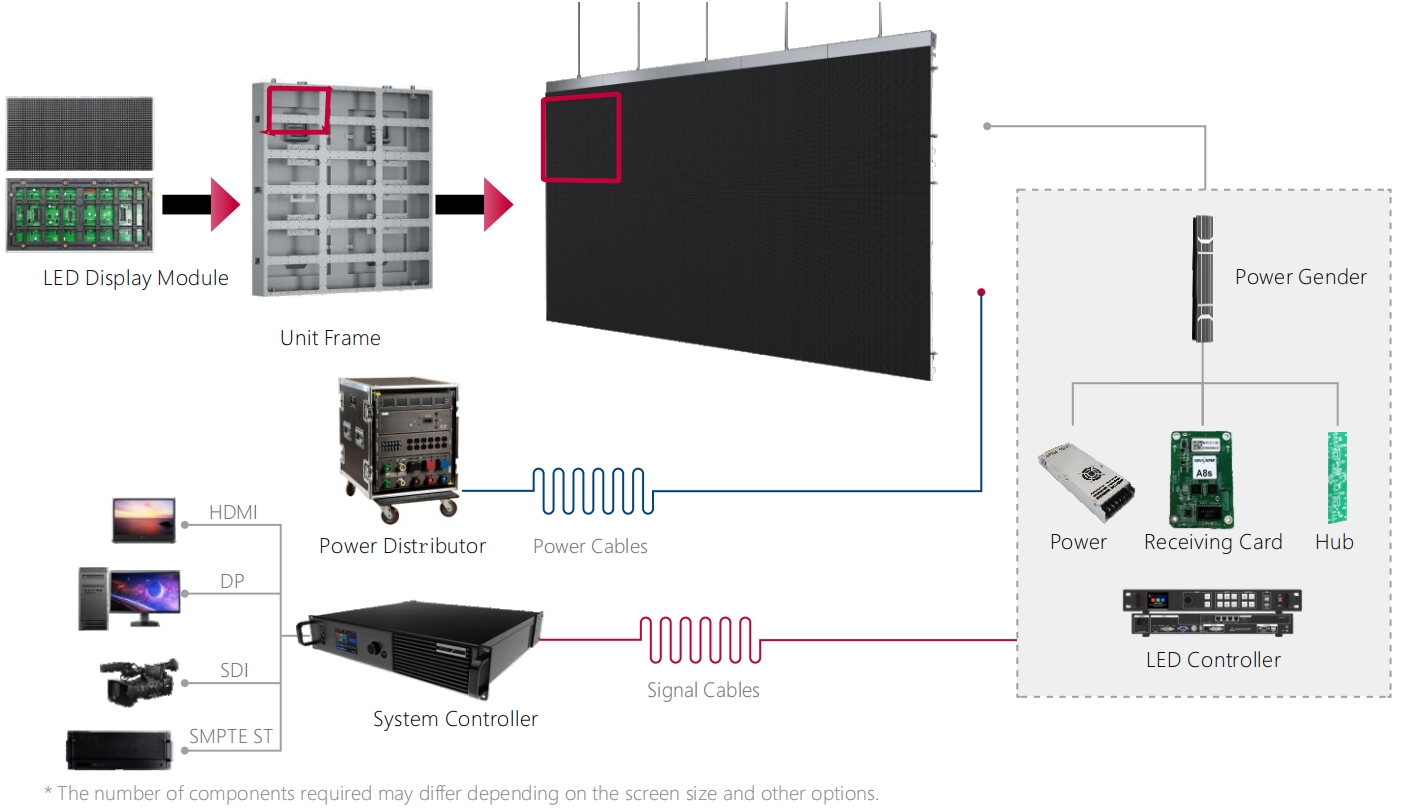

Power Models
* The number of components required may differ depending on the screen size and other options.

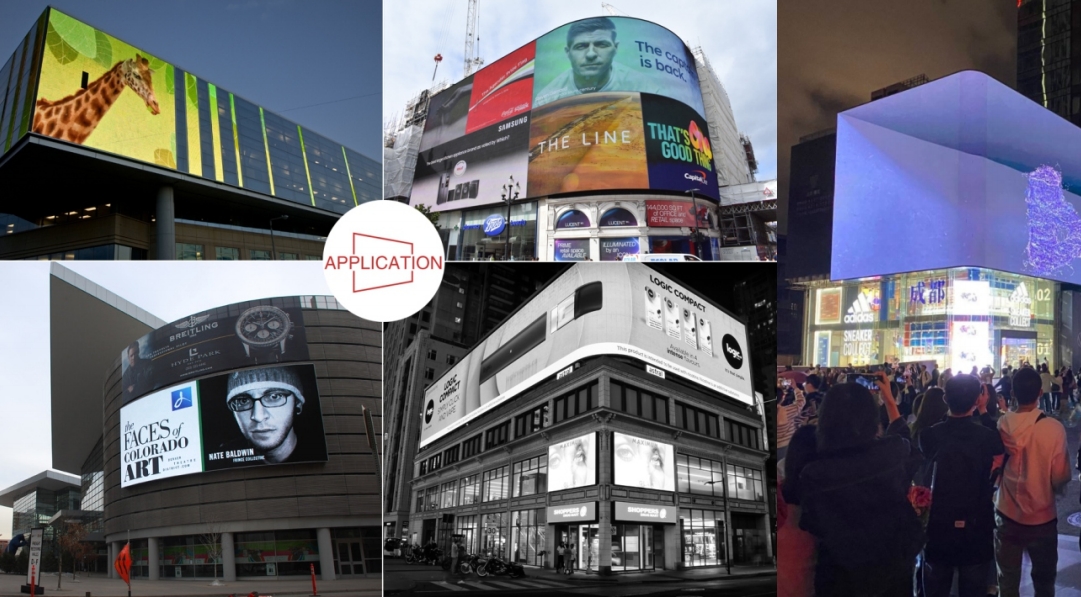

APPLICATIONS
* System application.
