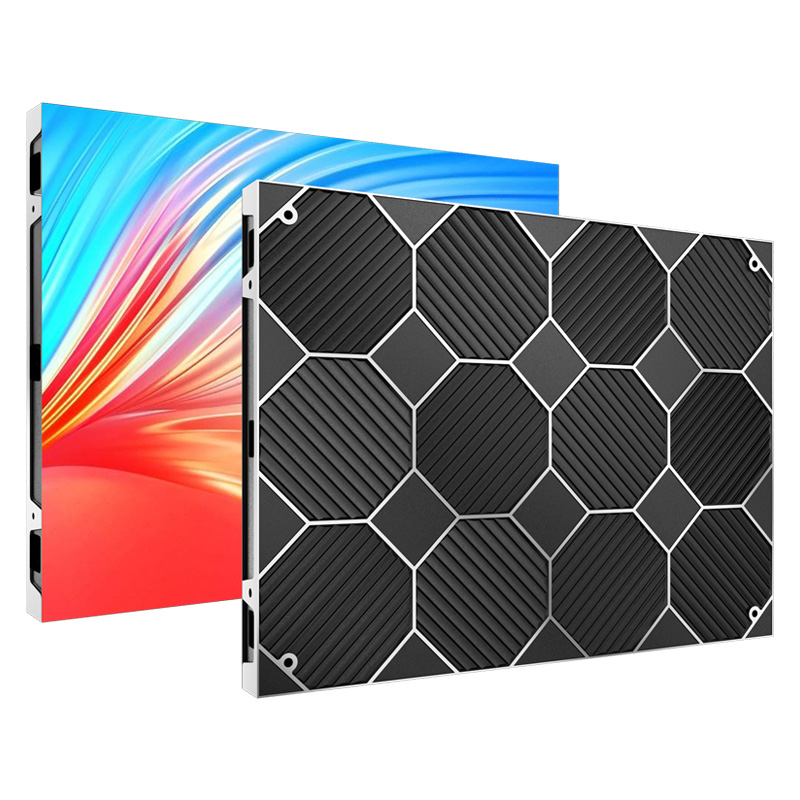

ZDO Series Outdoor Flexible Waterproof Fixed LED Display Screen
Main Features

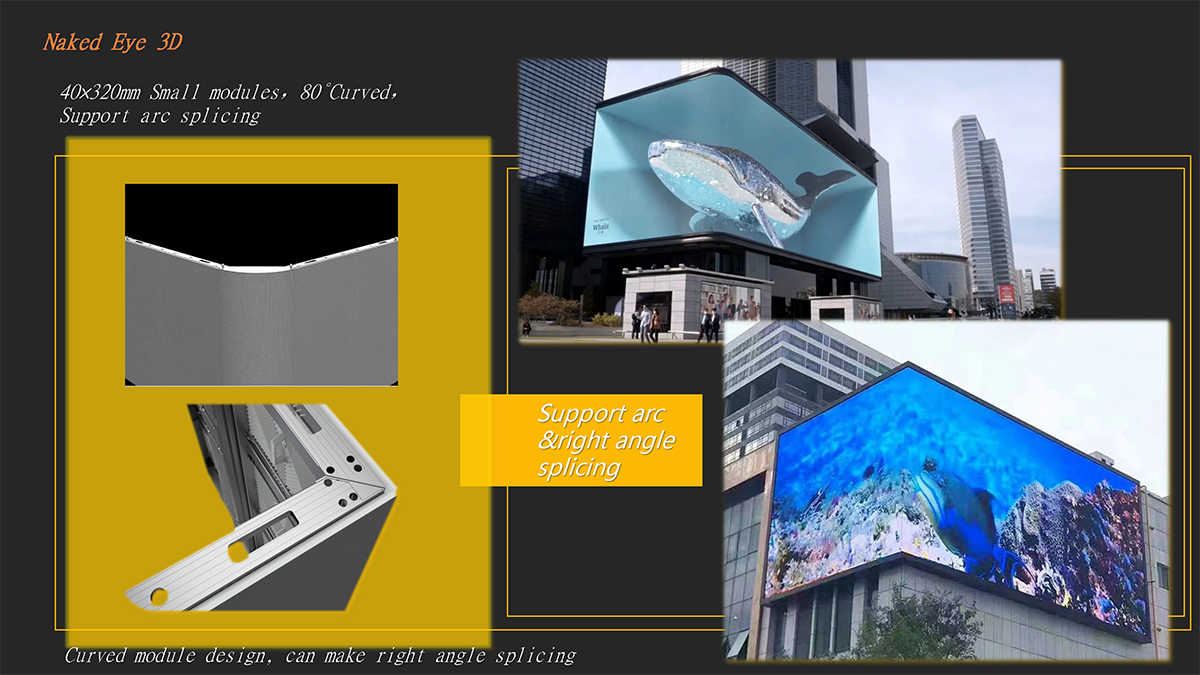

√ Naked Eye 3D : 40×320mm Small modules, 80°Curved, Support arc splicing

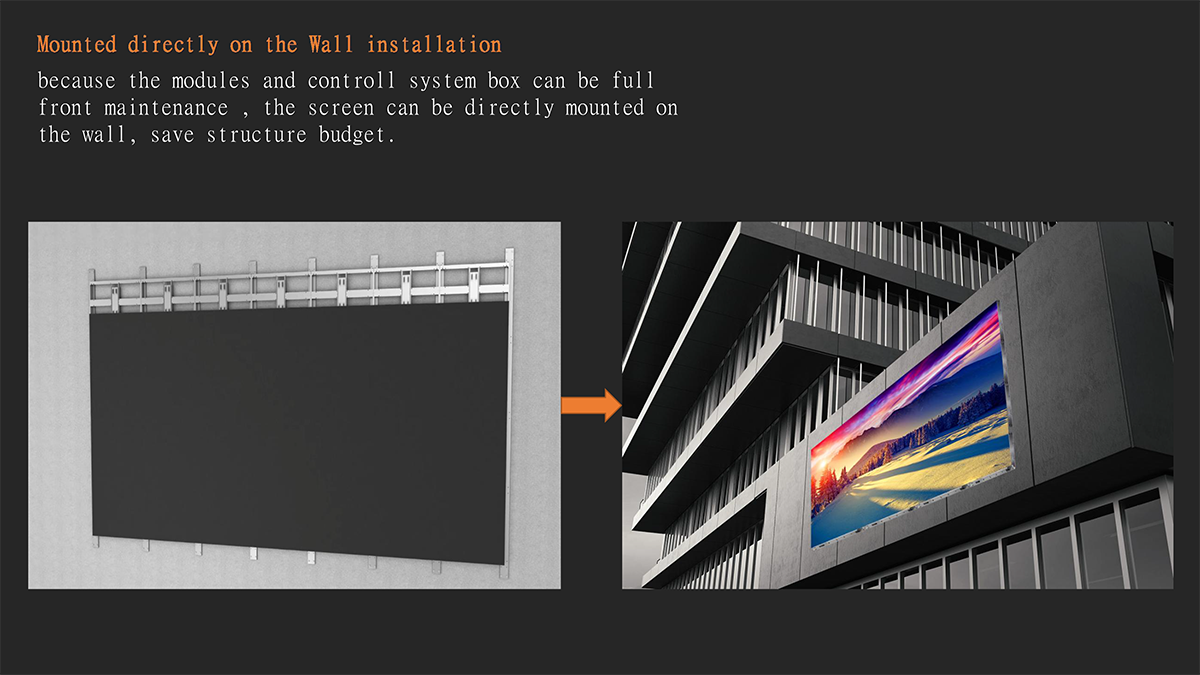

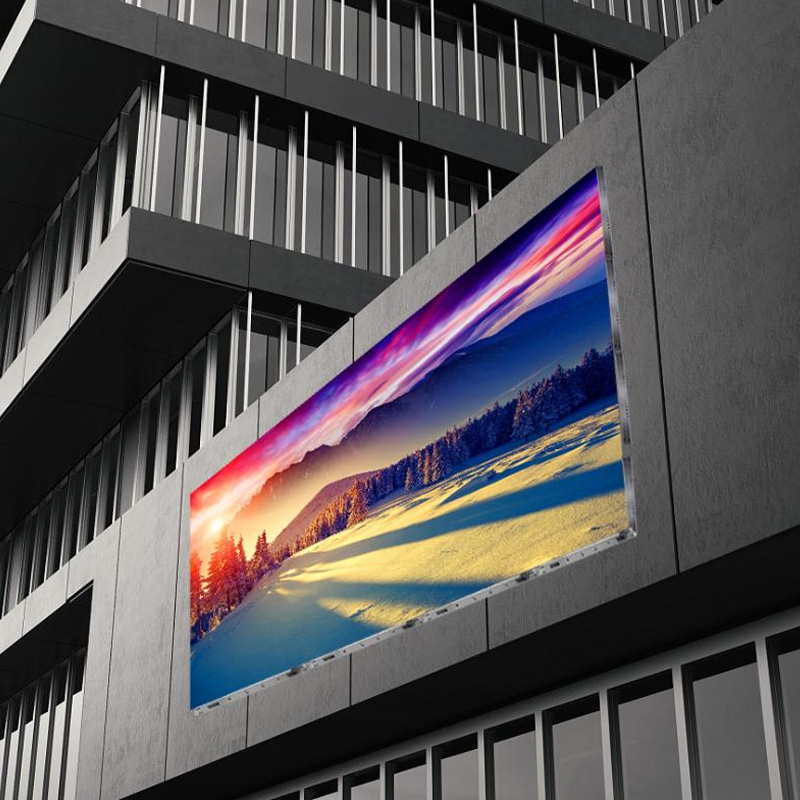

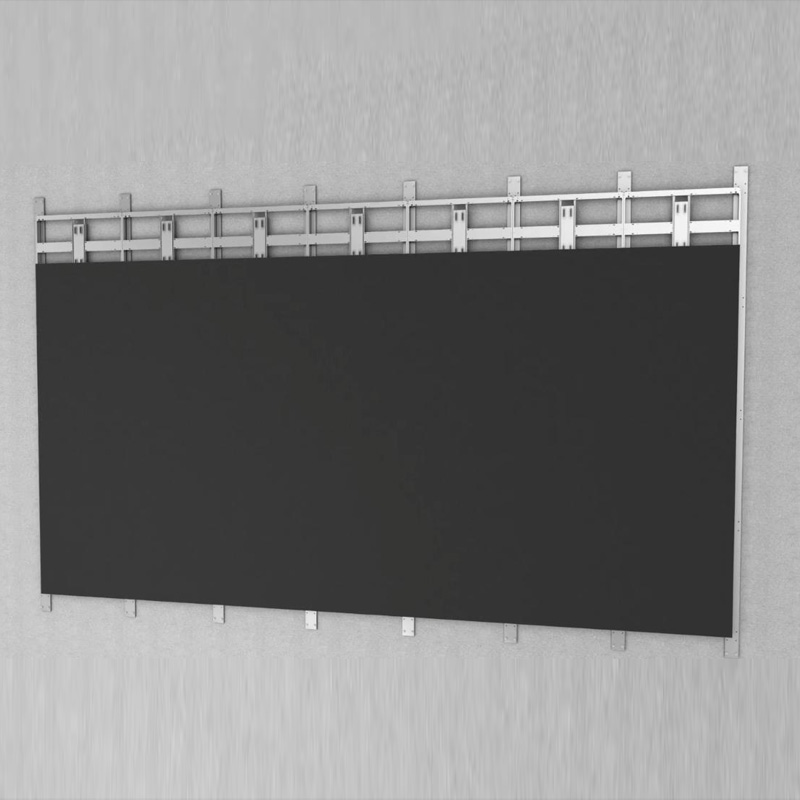

√ Curved module design, can make right angle splicing , Support arc &right angle splicing Mounted directly on the Wall installation

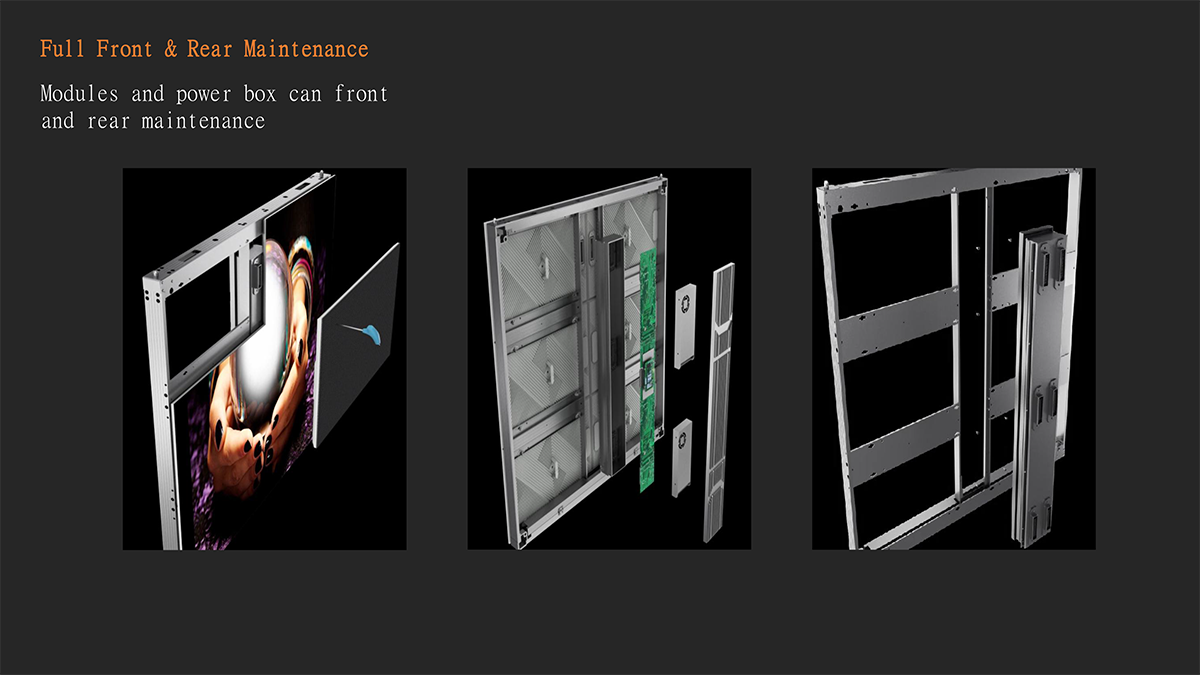

√ Full Front & Rear Maintenance : Modules and power box can front and rear maintenance
√ Die-Casting Aluminum design : High fire protection rate, Can get the TUV of 5VB fire protection certification.
PRODUCT DETAILS

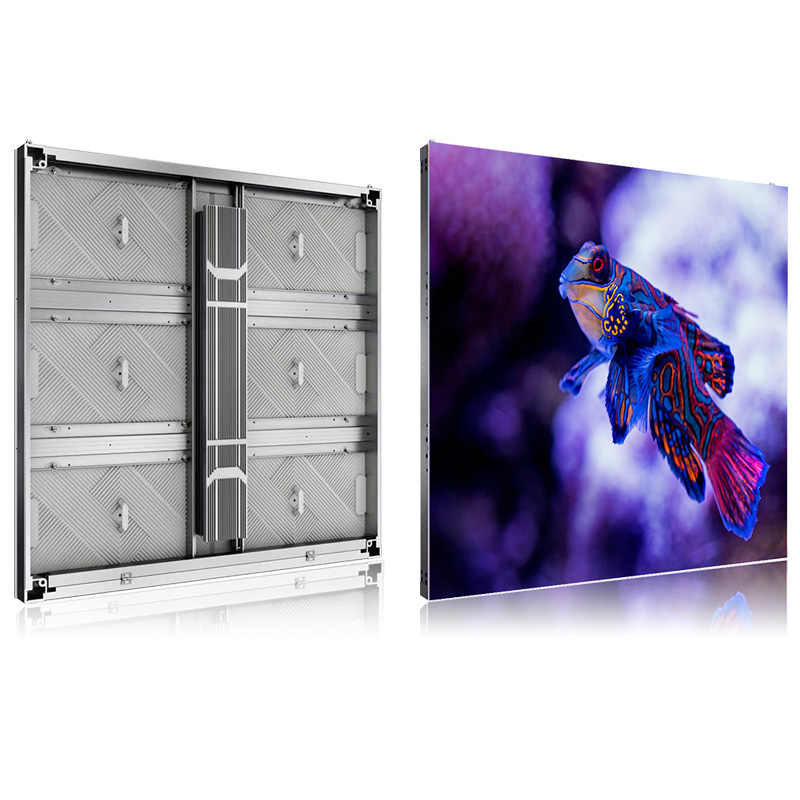

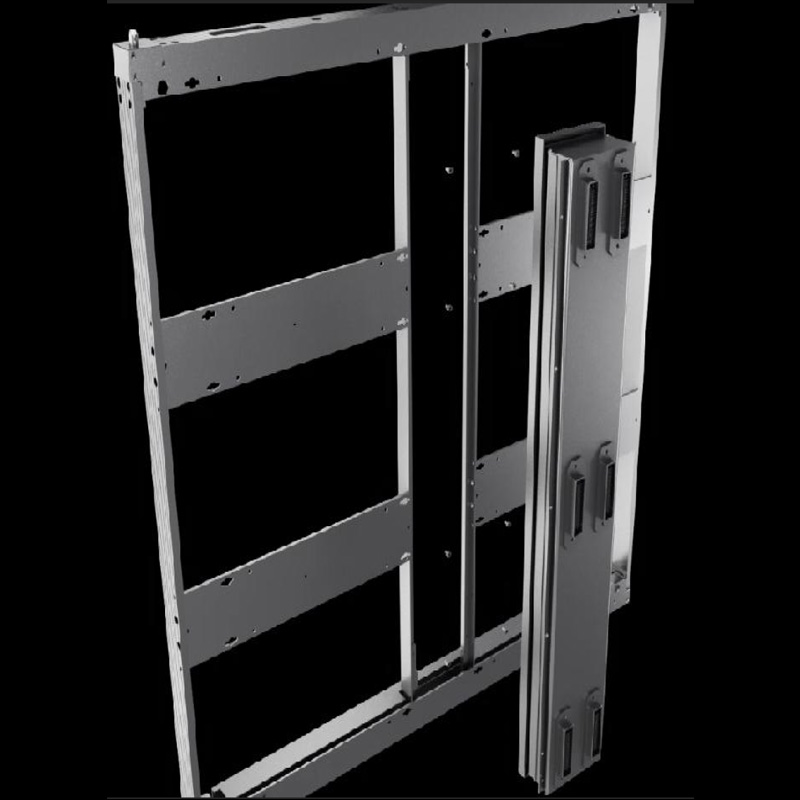

Outdoor Fully Waterproof Fixed LED Display
High Protection Aluminum Chassis Panel Design, Energy Saving LED Display, Easy to install and disassemble.
ZDO Series Outdoor Flexible Waterproof Fixed LED Display Screen
LED rental screen in the use of this area is mainly in the stage / church / and some art performance to use 500* 1000mm and 500*500mm two size optional:
● Naked Eye 3D : 40×320mm Small modules, 80° Curved, Support arc splicing.
● Curved module design, can make right angle splicing , Support arc &right angle splicing Mounted directly
on the Wall installation.
● Full Front & Rear Maintenance : Modules and power box can front and rear maintenance.
● Die-Casting Aluminum design : High fire protection rate, Can get the TUV of 5VB fire protection certification.

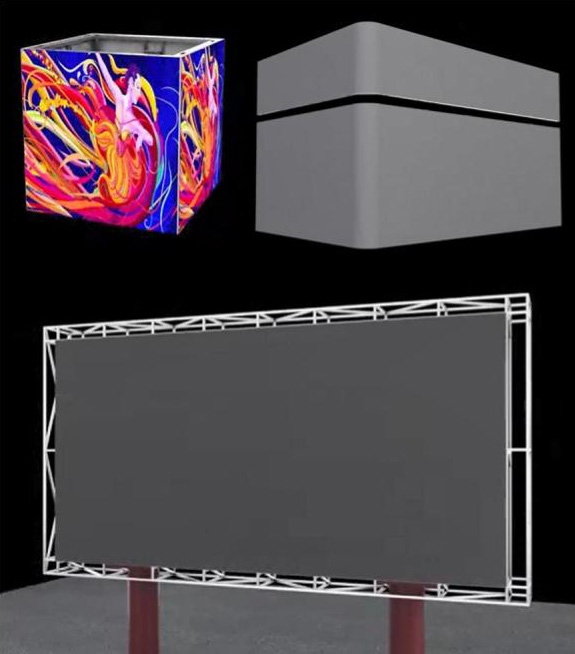

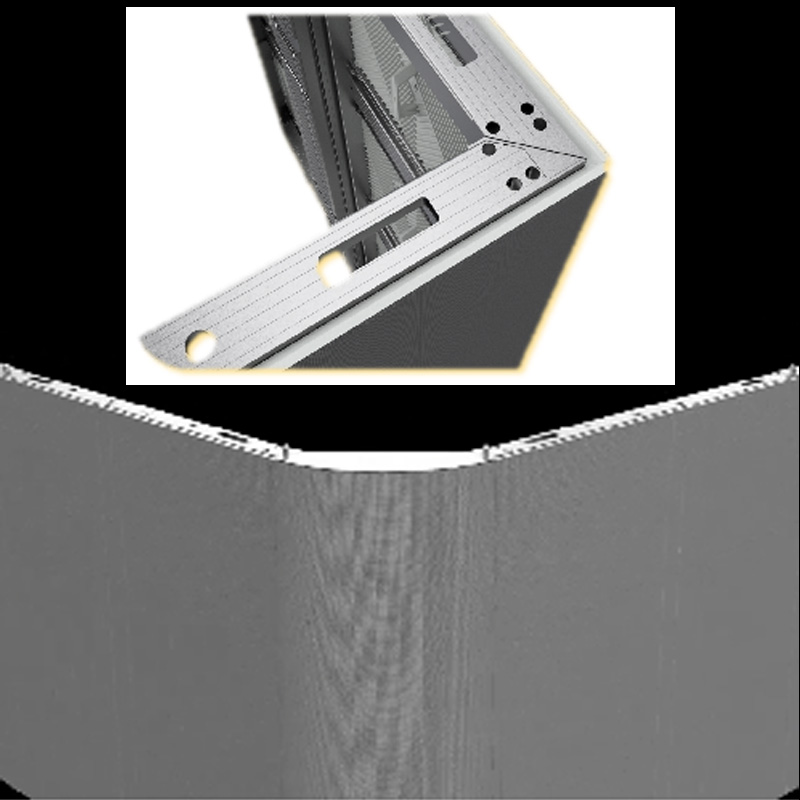

Arc Customization
Seamless rounded corners,90° splicing, The curved corner of the screen has a minimum radius of 304mm, the radius size can be customized.
|
|
|
|

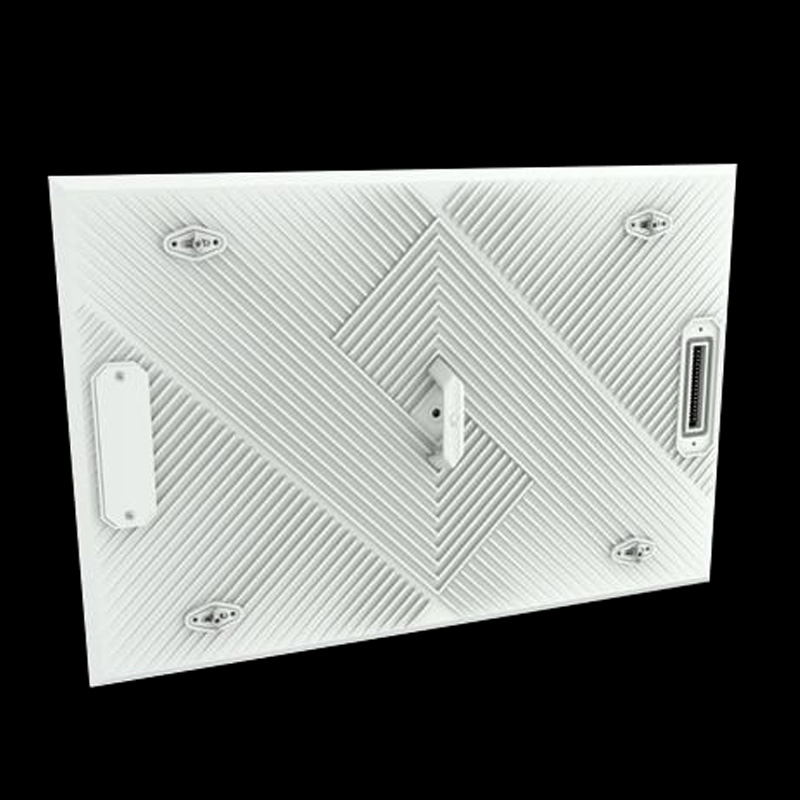

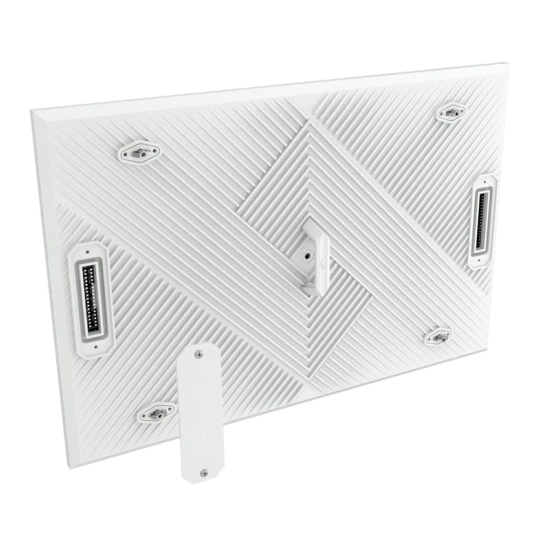

40mm x 320mm Module, 80° Bevel,Supports Arc Stitching
|
||
|
||
|
The module comes standard with beveled edge, which supports direct stitching
|
||
|
||
| Arc customization |
Technical Parameters
Up to 10000nits high brightness brings clear images under strong sunlight;
Ultra-low attenuation ensures sharp & vibrant images even after year-by-year running, generating great implicit commercial value for your investment.
Installation Method
 |
Unique panel design with 480*320mm and 960*960mm cabinet size, Ultra thin thckness with 75mm design Weight: 28KG/㎡ for Aluminum frame, 35KG/㎡ for mental frame More size 960*1280/960*960/960*640/1440*1280/ 1440*960mm is Available.
|

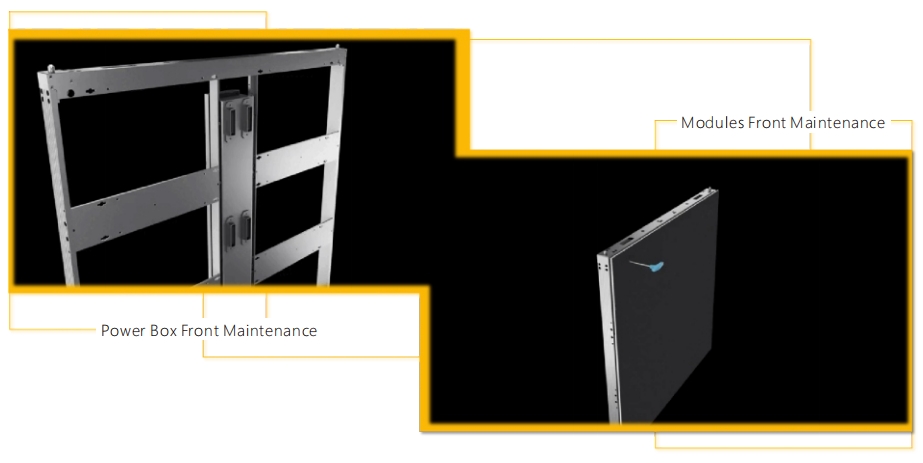

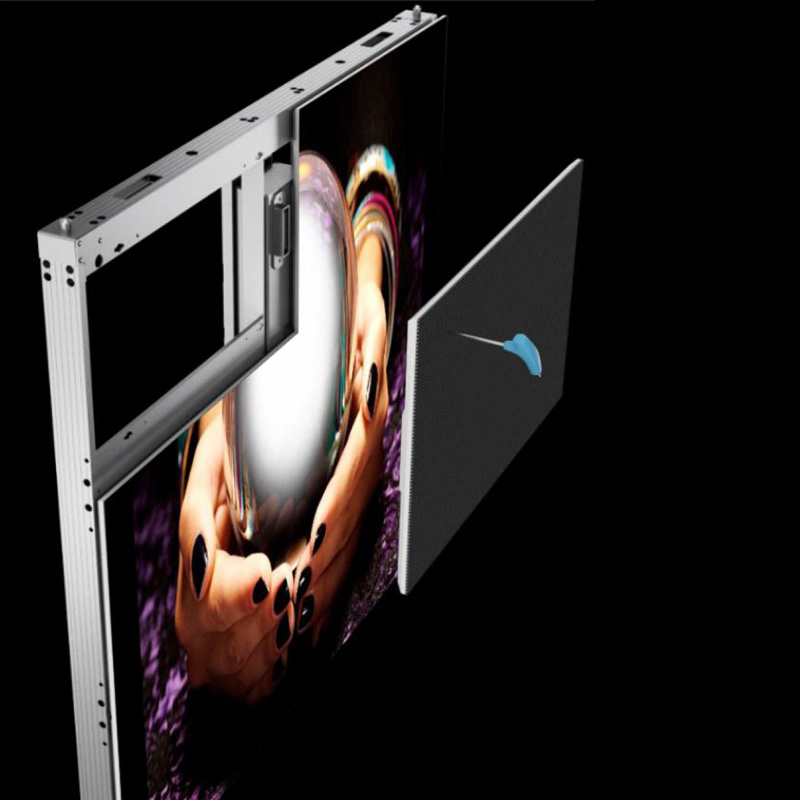

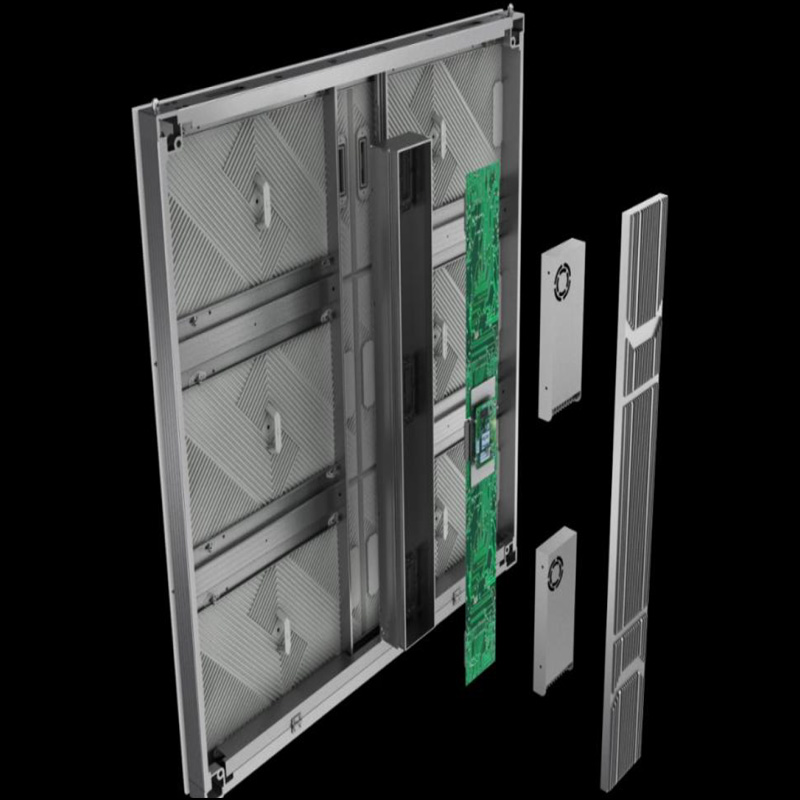

Dual Service with Frontal and Real Maintenance

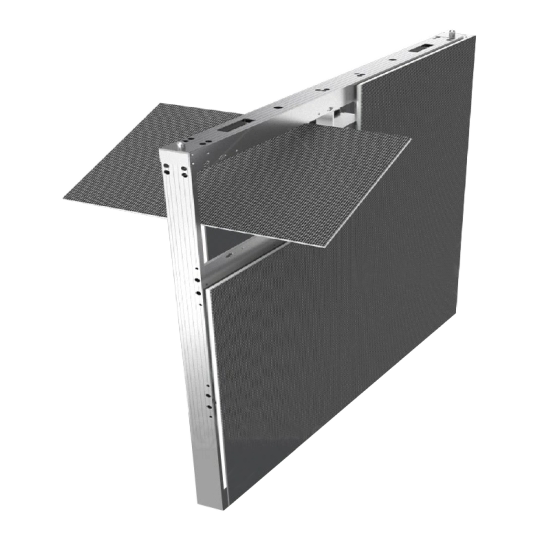

Dual-service mode of front and rear design to save you maintenance costs, the LED panel can be assembled and disassembled easily and quickly.
Installation Method
Fast locks design, reach fast assembly and disassembly.
|

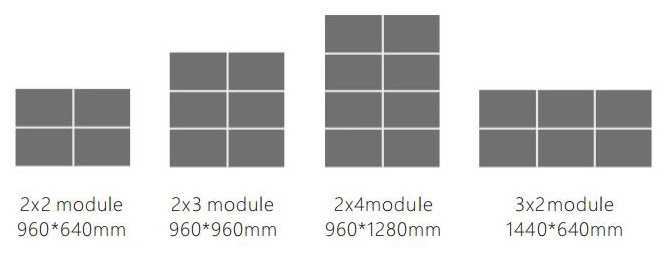

Installation Multiple Sizes
Available: 960*1280 | 960*960 | 960*640 | 1440*1280 |1440*960
|

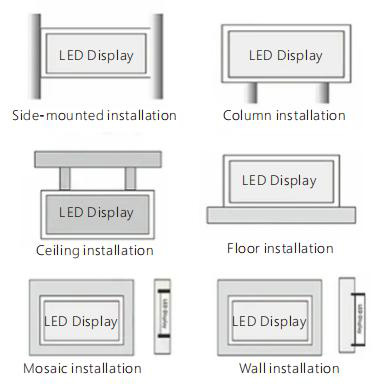

Installation Types
+6 installation methods to meet almost all installation needs
|
 |
 |
Specifications
| Technical Parameters | ||||
| Part Number | P5.71 | P6.67 | P8 | P10 |
| Pixel Pitch | 5.71mm | 6.67mm | 8mm | 10mm |
| LED Configuration | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 30625dot/m2 | 22500dot/m2 | 15625dot/m2 | 10000dot/m2 |
| Resolution of module | 84*56dot | 72*48dot | 60*40dot | 48*32dot |
| Module size | 480*320mm | 480*320mm | 480*320mm | 480*320mm |
| Box specification | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| IP Rating ( front/back) | IP65 | IP65 | IP65 | IP65 |
| Scanning Mode | 7S | 6S | 4S | 2S |
| Brightness Intensity | 6500CD/m² | 6500CD/m² | 6500CD/m² | 7000CD/m² |
| Viewing Angle | 140° | 140° | 140° | 140° |
| View Distance | ＞6m | ＞7m | ＞8m | ＞10m |
| Gray Scale | 14bit | 14bit | 14bit | 14bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 800W | 800W | 750W | 800W |
| Refresh Frequency | 3840HZ | 2880HZ | 2880HZ | 2880HZ |
| Interface definition | Hard Connection | Hard Connection | Hard Connection | Hard Connection |
| Gamma Correction | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 |
| Environmental | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
| Brightness Adjustment | 0 - 100 levels adjustable | |||

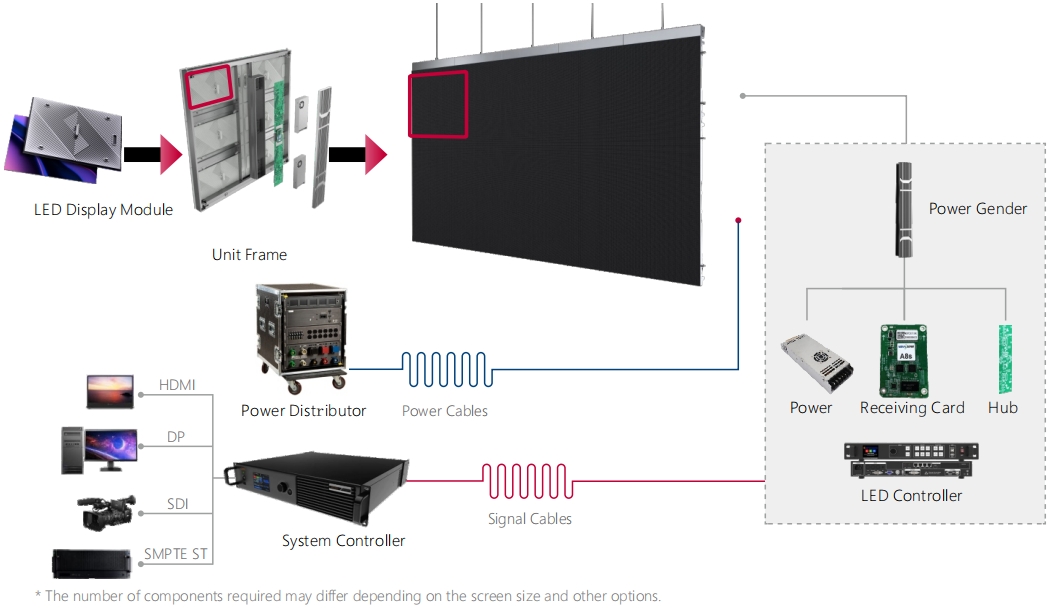

| Control Mode | Synchronous display with control PC by DVI | |||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
| Operation Power | AC100~240 50/60HZ | |||
| Operating Temperature | - 20℃~+50℃ | |||
| Operating Humidity | 10~95% RH | |||
| Operating Life | 50,000hours | |||
Appearance

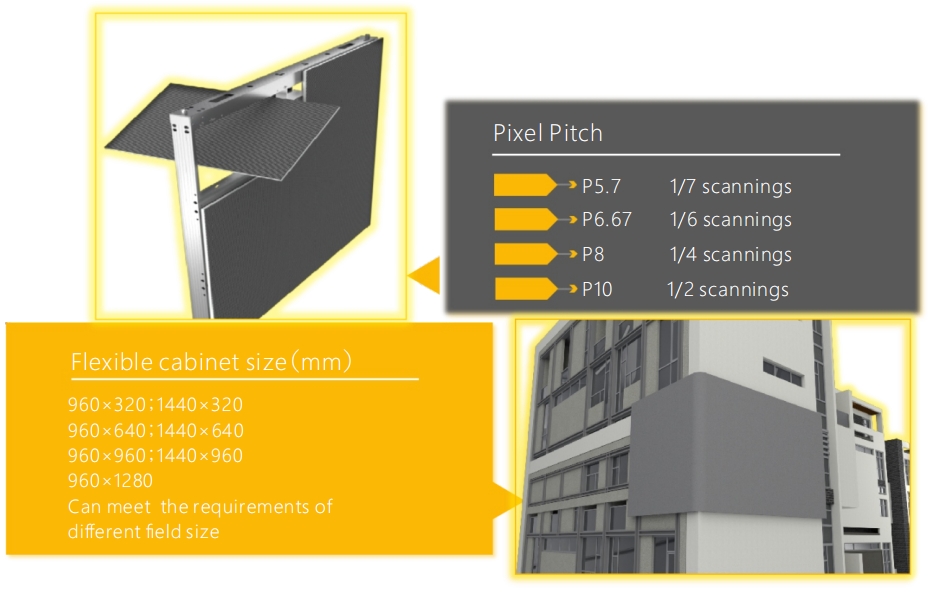

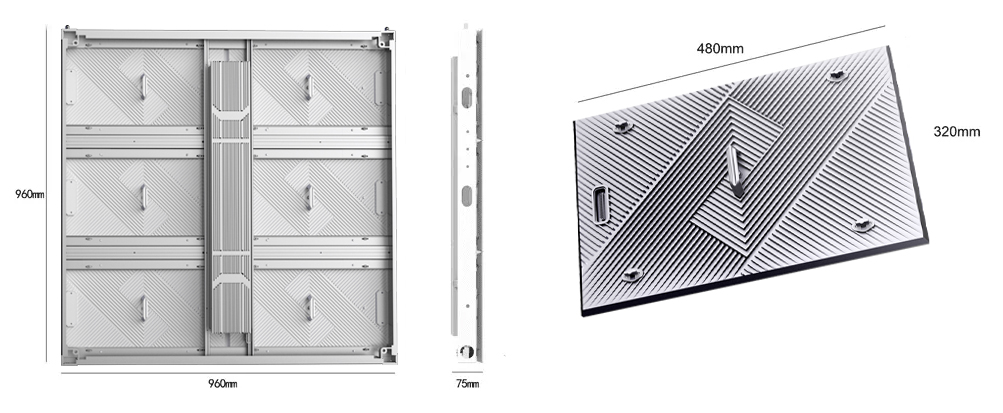

Pixel Pitch and Cabinet size
Features

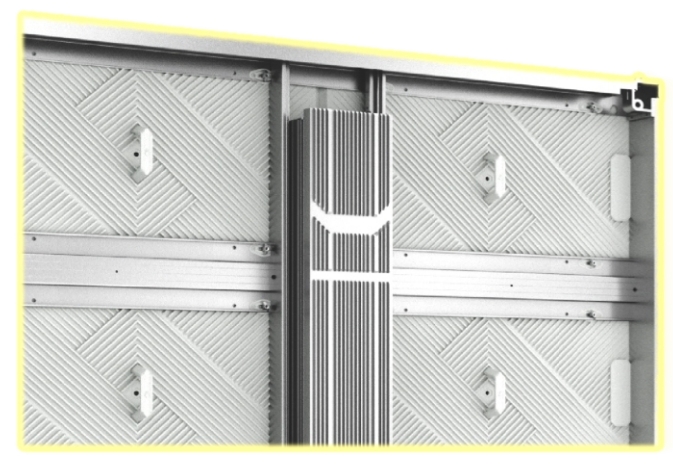

Heat-Emiting and low power consumption design
 |
● Partial voltage design：lower Heat-emitting & power consumption

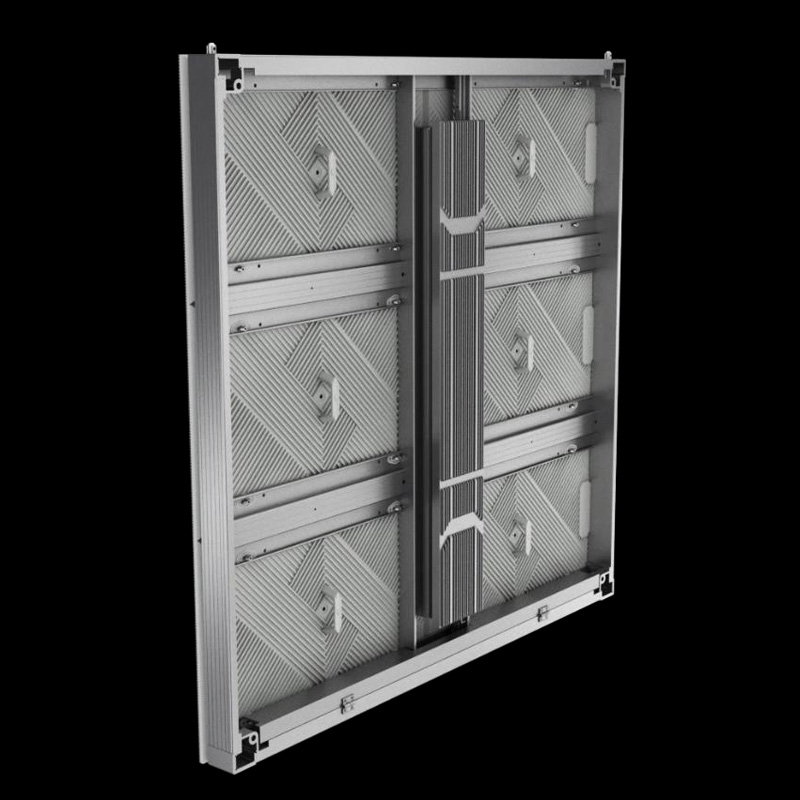

● Die-Casting Aluminum design：Good Heat-emitting
● Grain Heat-emitting design：bigger heat-emitting area, no need to add fans or air conditioner for the screen
|

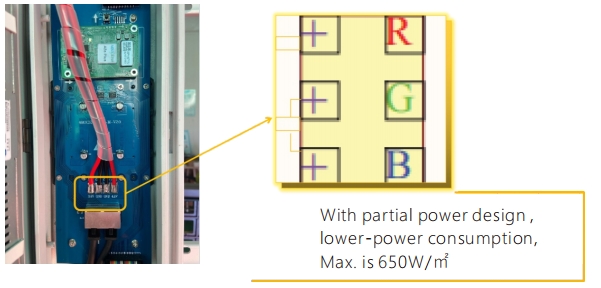

Partial power design

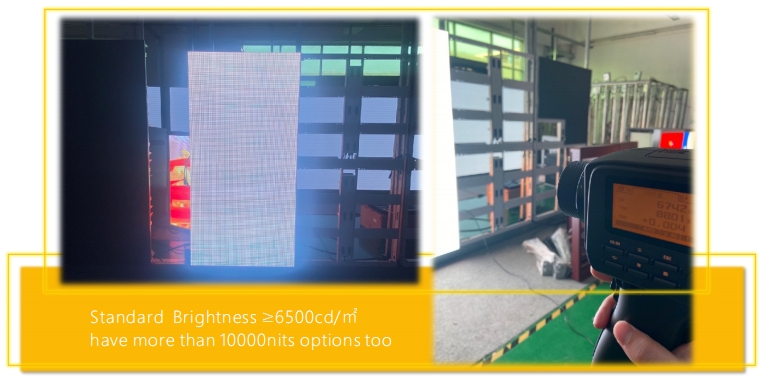

Brightness Testings

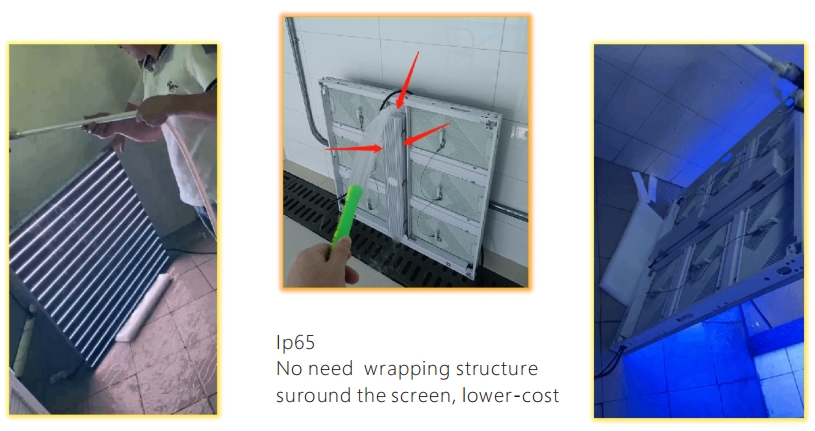

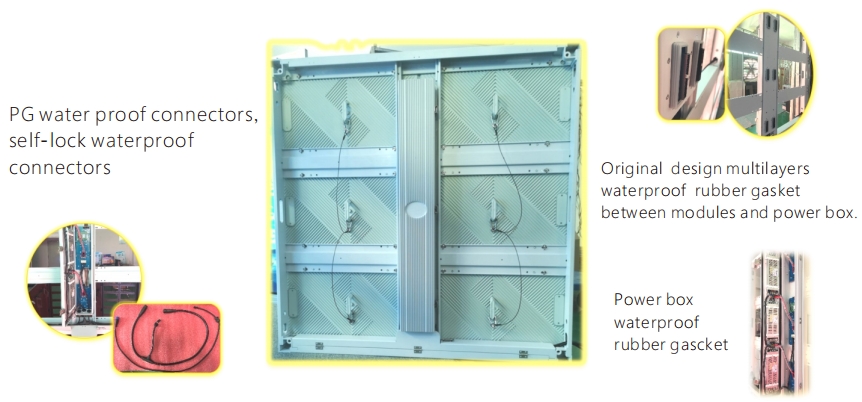

Water-proof Desgin

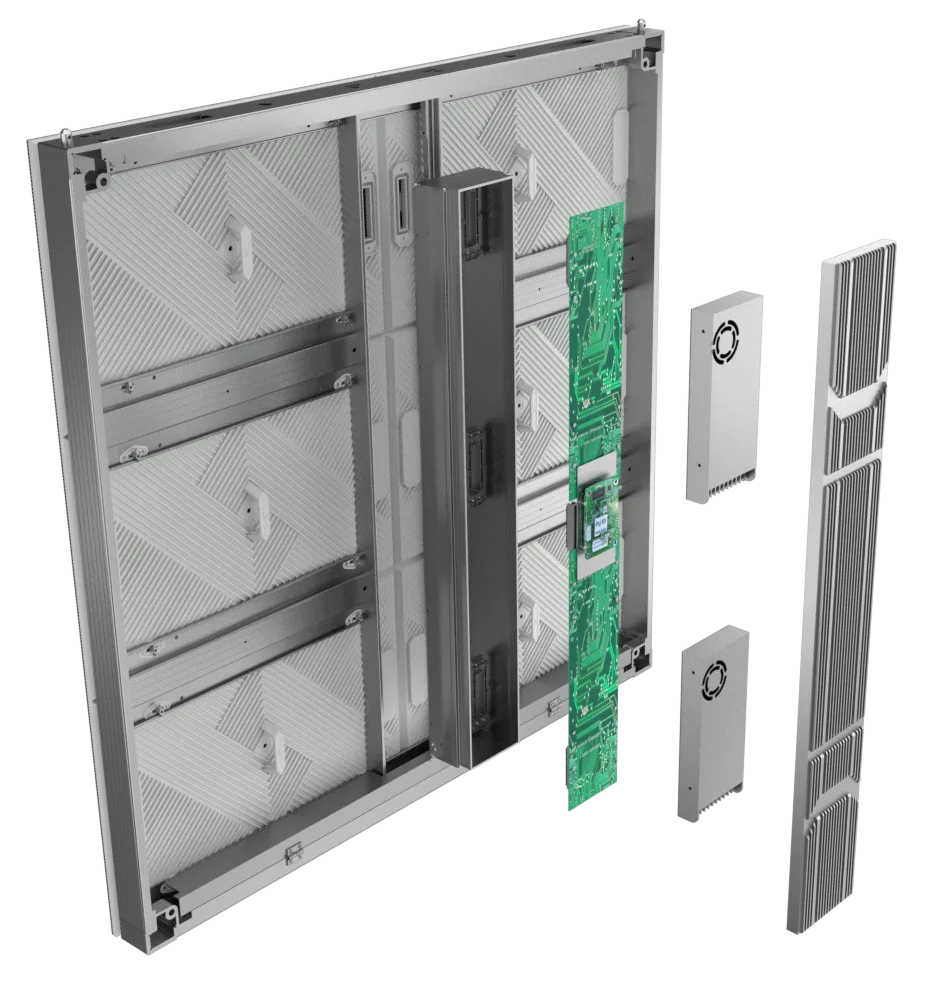

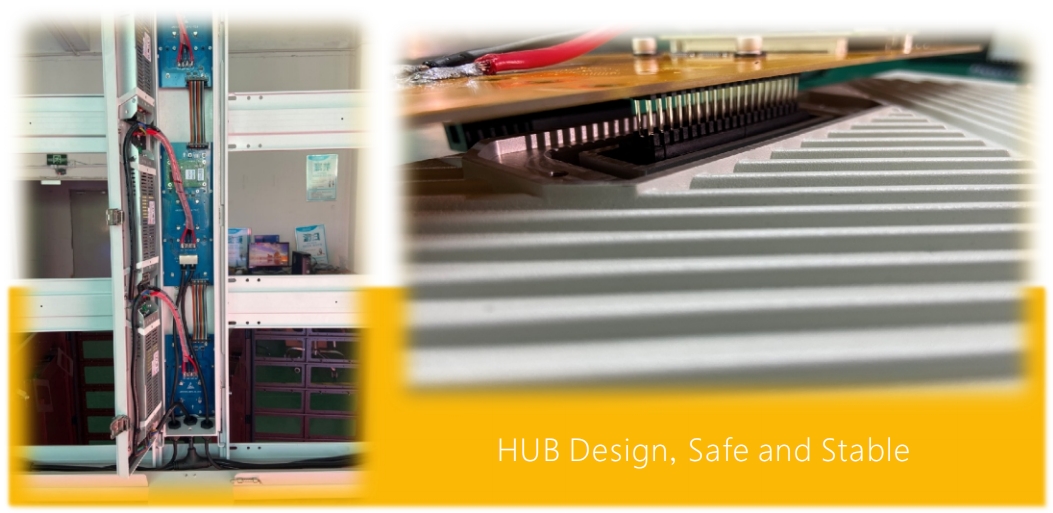

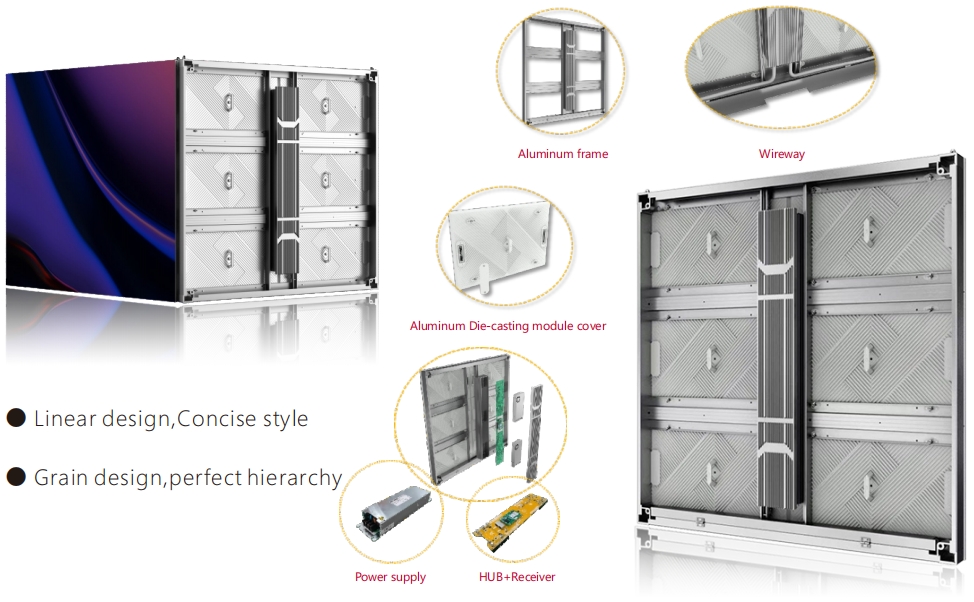

Full front & rear design, HUB Design
Power Models
